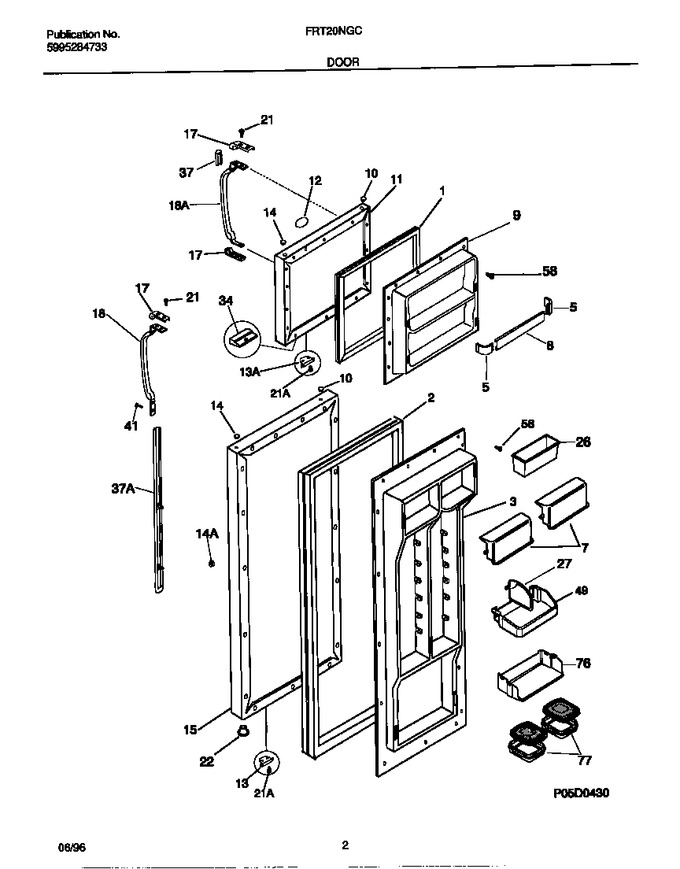

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	215608915		Gasket-frzr Door, White, Magnetic		Appelez-nous	-
2	5303297897		Gasket-refr Door, Magnetic, White		Appelez-nous	-
3	215434701		Panel, Inner Door Refr		Appelez-nous	-
5	215251401		Support-door Rack, ``2-liter``, Rh/lh		Appelez-nous	-
7	5303308347		Door-dairy		Appelez-nous	-
8	215516258		Rack-door, (2)		Appelez-nous	-
9	215278301		Panel-inner Door, Frzr		Appelez-nous	-
10	5303292413		Plug-button, White, Hinge Brg Hole				$ 4.94
11	5303917560		Panel-frzr Door, White, W/foam Insulatn		Appelez-nous	-
12	5315340712		Tape, Adhesive, 12`` Long, Foam, Double-faced (not Illust		Appelez-nous	-
12	215008604		Label-nameplate, White (not Illustrated)		Appelez-nous	-
12	218364004		Frame-nameplate, White		Appelez-nous	-
13	215030001		Door Stop, White, Frzr				$ 29.61
13	5303289522		Door Stop				$ 40.17
14	240494001		Plug-button,white ,refr Door Front ,   (Replaces: 215352201)			Immediately	$ 18.20
14	215352101		Plug-button, White, Handle Mtg		Appelez-nous	-
15	5303917563		Panel-refr Door, White, W/foam Insulatn		Appelez-nous	-
17	218696401		Handle End, White				$ 47.04
18	215983201		Handle-door, White, Refr, Soft Grip		Appelez-nous	-
18	215981301		Handle-door, White, Frzr, Soft Grip		Appelez-nous	-
21	218556800		Screw-handle Mtg, Flat Head, 10-16ab X 0.625		Appelez-nous	-
21	218578600		Screw-door Stop Mtg, Phl Truss Hd, 10-16 X 3/4				$ 8.08
22	5303289320		Bearing-hinge				$ 19.69
26	3204522		Container-egg				$ 98.33
27	218370101		Snugger-door Bin, ``paddle Type``, Gallon Door Bin				$ 88.03
34	215423601		Bumper-light Switch		Appelez-nous	-
37	218549826		Trim-handle, White, Upper, W/dec Gold Band		Appelez-nous	-
37	215867076		Trim-handle, White, Lower, W/gold Band, And Snap Lock		Appelez-nous	-
37	215940700		Lock-handle Trim, Stick-on (not Illustrated)		Appelez-nous	-
41	218843801		Screw   (Replaces: 5303001001)				$ 14.41
49	215441502		Bin-door, Gallon, With Trim   (Replaces: 218592305)				$ 176.87
58	5303314236		Screw, Truss/ph Head, 8-18ab X 0.500		Appelez-nous	-
76	218423900		Rack-microwave Dish		Appelez-nous	-
77	218423502		Dish-microwave, (2)		Appelez-nous	-
*15760	5303917276		Insulation-door, Fiberglass, (bulk)				$ 330.91
