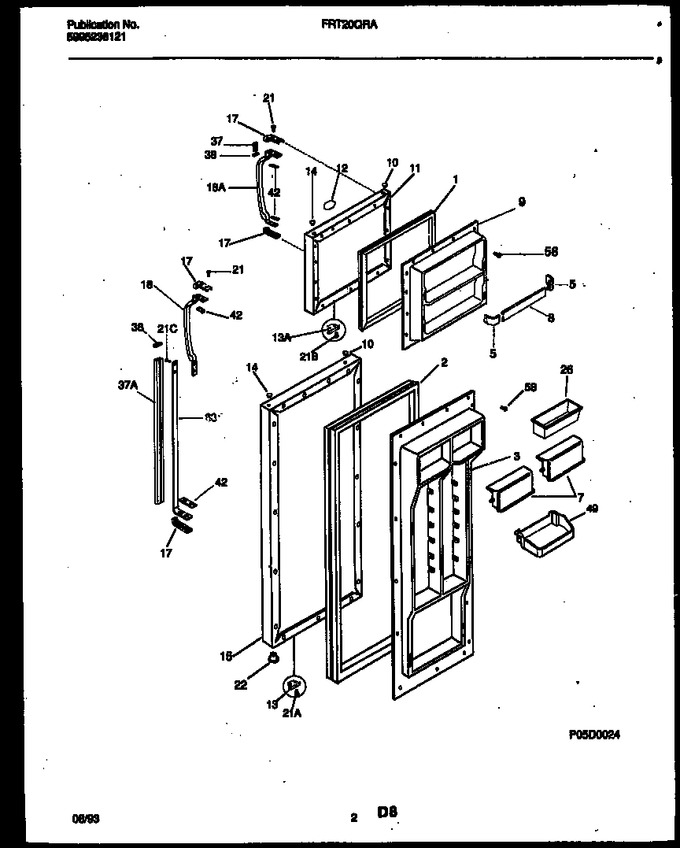

02 - Door Parts


03 - Cabinet Parts


05 - Shelves And Supports


07 - System And Automatic Defrost Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5303292373		Gasket-frzr Door, Magnetic, White		Appelez-nous	-
2	5303297897		Gasket-refr Door, Magnetic, White		Appelez-nous	-
3	215434701		Panel, Inner Door Refr		Appelez-nous	-
5	215251401		Support-door Rack, ``2-liter``, Rh/lh		Appelez-nous	-
7	5303292375		Door-dairy, (2)		Appelez-nous	-
8	5303293993		Rack-door, Full-width, (2)		Appelez-nous	-
9	215278301		Panel-inner Door, Frzr		Appelez-nous	-
10	5303292413		Plug-button, White, Hinge Brg Hole				$ 4.94
11	215307601		Panel-frzr Door, White, W/foam Insulatn		Appelez-nous	-
12	215008601		Nameplate Assy, White		Appelez-nous	-
13	5303289522		Door Stop				$ 40.17
14	215352101		Plug-button, White, Handle Mtg		Appelez-nous	-
15	215590801		Panel-refr Door, White, W/foam Insulatn		Appelez-nous	-
17	215188401		Handle End, White		Appelez-nous	-
18	215190601		Handle-door, White, Refr		Appelez-nous	-
21	215201400		Screw-handle Mtg, Torx Flat Head, 8-18(ab) X 5/8, (8)		Appelez-nous	-
22	5303289320		Bearing-hinge				$ 19.69
26	5303288969		Container-egg		Appelez-nous	-
37	215117407		Trim-handle,1.27``,white,upper		Appelez-nous	-
38	215117301		Band-decorative,handle		Appelez-nous	-
42	215209000		Shim-handle		Appelez-nous	-
49	215441502		Bin-door, Gallon   (Replaces: 5303292390)				$ 176.87
58	5308002748		Screw		Appelez-nous	-
63	215209502		Rail-handle Trim Mtg, 20.83``		Appelez-nous	-
*83794	5303917276		Insulation-door, Fiberglass, (bulk)				$ 330.91
*83794	240494001		Plug-button,white ,refr Door Front ,   (Replaces: 215352201)			Immediately	$ 18.20
13A	215030001		Door Stop, White, Frzr				$ 29.61
18A	215190501		Handle-door, White, Frzr		Appelez-nous	-
21A	215218600		Screw-door Stop Mtg,torx Flat Head 10-16 X 3/4		Appelez-nous	-
21B	215218700		Screw-door Stop Mtg, Torx Pan Head,10-16 X 3/4		Appelez-nous	-
21C	215732700		Screw-handle Mtg, Pan Head, 10-12 X 1/2		Appelez-nous	-
37A	215117413		Trim-handle, 20.97``, White, Lower		Appelez-nous	-
