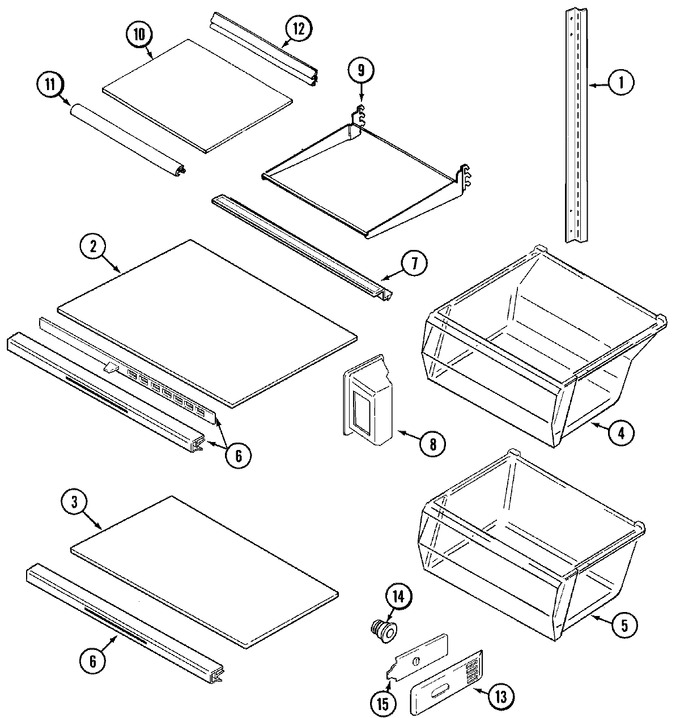

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	61003240		Rail, Shelf Support	11	Appelez-nous	-
1	WP489478		Screw   (Replaces: 400017-1)	11			$ 6.98
2	61003822		Glass, Crisper Shelf (upr)	11	Appelez-nous	-
3	61003823		Glass, Meat Shelf	11	Appelez-nous	-
4	61003892		Pan, Crisper	11	Appelez-nous	-
5	61003893		Pan, Meat	11	Appelez-nous	-
6	61003894		Trim, Shelf (crisper)	11	Appelez-nous	-
6	61003879		Trim, Front Shelf Glass----na	11	Appelez-nous	-
7	61003895		Seal,crisper Shelf----na	11	Appelez-nous	-
8	WP61006081		Cover Assy., Air Return   (Replaces: 61003164)	11			$ 80.27
9	61003896		Frame, Shelf	11	Appelez-nous	-
10	61003897		Glass, Shelf	11	Appelez-nous	-
11	61003867		Trim, Ext. Glass Shelf (front)	11	Appelez-nous	-
12	61003866		Trim, Ext. Glass Shelf (rear)	11	Appelez-nous	-
13	61003250		Retainer, Control Slide	11	Appelez-nous	-
14	53726-2		Tunnel, Air (meat)	11	Appelez-nous	-
15	61003249		Slide, Control (meat)	11	Appelez-nous	-
