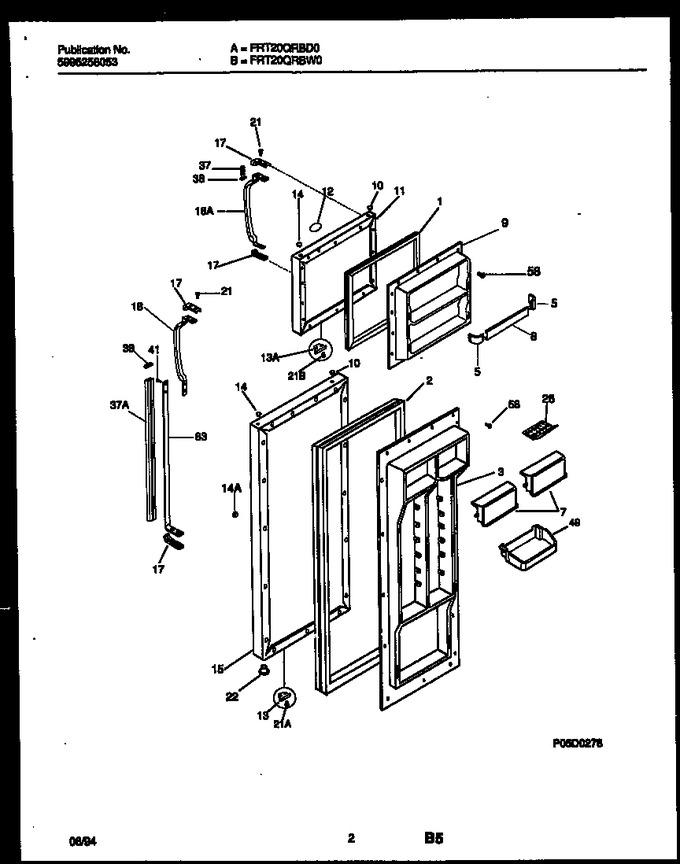

02 - Door Parts
04 - Cabinet Parts
06 - Shelves And Supports
08 - System And Automatic Defrost Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 215776715 | Gasket-frzr Door, White, Magnetic |
|
- | |||||
| 2 | 215732419 | Gasket-refr Door, White, Magnetic |
|
- | |||||
| 3 | 215434701 | Panel, Inner Door Refr |
|
- | |||||
| 5 | 215251401 | Support-door Rack, ``2-liter``, Rh/lh |
|
- | |||||
| 7 | 5303304569 | Door-dairy |
|
- | |||||
| 8 | 5303293993 | Rack-door, Full-width, (2) |
|
- | |||||
| 9 | 215278301 | Panel-inner Door, Frzr |
|
- | |||||
| 10 | 5303292413 | Plug-button, White, Hinge Brg Hole |
|
$ 4.94 | |||||
| 11 | 215307601 | Panel-frzr Door, White, W/foam Insulatn |
|
- | |||||
| 12 | 215008601 | Nameplate Assy, White |
|
- | |||||
| 13 | 5303289522 | Door Stop |
|
$ 40.17 | |||||
| 14 | 215352101 | Plug-button, White, Handle Mtg |
|
- | |||||
| 15 | 215590801 | Panel-refr Door, White, W/foam Insulatn |
|
- | |||||
| 17 | 218025601 | Handle End, White |
|
- | |||||
| 18 | 218025801 | Handle-door, White, Refr |
|
- | |||||
| 21 | 215201400 | Screw-handle Mtg, Torx Flat Head, 8-18(ab) X 5/8 |
|
- | |||||
| 22 | 5303289320 | Bearing-hinge |
|
$ 19.69 | |||||
| 26 | 215817806 | Tray-egg |
|
$ 13.46 | |||||
| 37 | 215117407 | Trim-handle,1.27``,white,upper |
|
- | |||||
| 38 | 215117301 | Band-decorative,handle |
|
- | |||||
| 41 | 5308000039 | Screw |
|
- | |||||
| 49 | 215441502 | Bin-door, Gallon (Replaces: 215441501) |
|
$ 176.87 | |||||
| 58 | 5308002748 | Screw |
|
- | |||||
| 63 | 215209502 | Rail-handle Trim Mtg, 20.83`` |
|
- | |||||
| *10472 | 5303917276 | Insulation-door, Fiberglass, (bulk) |
|
$ 330.91 | |||||
| 13A | 215030001 | Door Stop, White, Frzr |
|
$ 29.61 | |||||
| 14A | 240494001 | Plug-button,white ,refr Door Front , (Replaces: 215352201) |
|
Immediately | $ 18.20 | ||||
| 18A | 218025701 | Handle-door, White, Frzr |
|
- | |||||
| 21A | 215218600 | Screw-door Stop Mtg,torx Flat Head 10-16 X 3/4 |
|
- | |||||
| 21B | 215218700 | Screw-door Stop Mtg, Torx Pan Head,10-16 X 3/4 |
|
- | |||||
| 37A | 215117413 | Trim-handle, 20.97``, White, Lower |
|
- |
