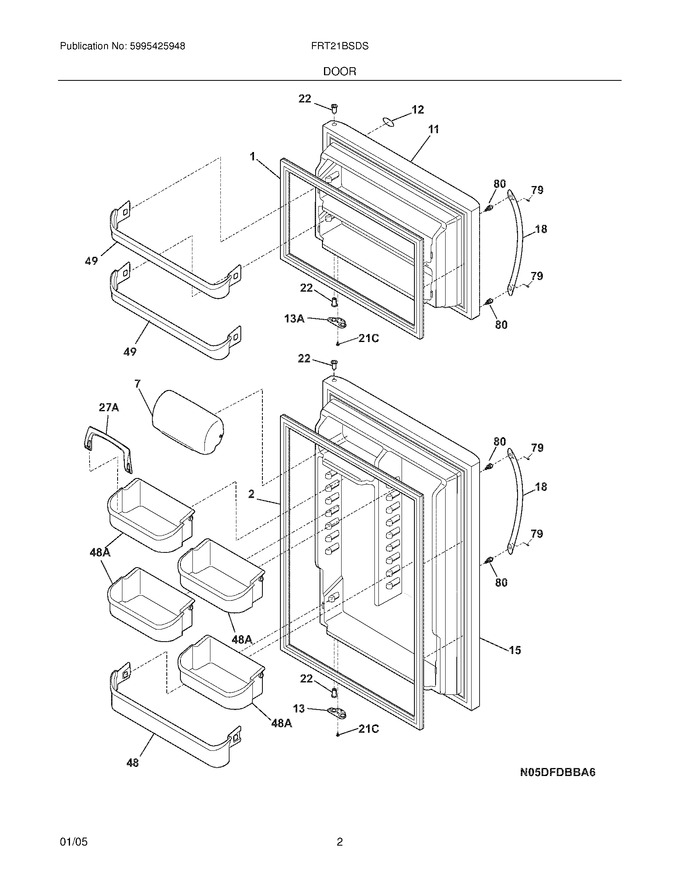

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
7	240338313		Door,dairy ,clear   (Replaces: 240338303)			Immediately	$ 80.80
11	240450363		Door,frzr ,stainless Steel ,lh				$ 323.95
12	241808601		Label-nameplate   (Replaces: 240572601)				$ 12.69
13	240312422		Door Stop,black ,refr   (Replaces: 240312405)				$ 15.17
15	240450472		Door,ref ,stainless ,lh ,complete Assy				$ 468.16
18	240413701		Handle-door,stainless Steel ,		Appelez-nous	-
22	5304507147		Bearing-hinge,black   (Replaces: 240527102)			Immediately	$ 7.59
48	240338101		Bin-door,pseudo ,bottom			Immediately	$ 52.37
49	240495805		Bin-door,pseudo ,frzr				$ 50.94
79	218755402		Screw-set,10-32 X 0.375			Immediately	$ 33.00
80	218755504		Screw-shoulder,no.10 Ab ,handle Mounting   (Replaces: 218755503)			Immediately	$ 18.60
13A	240312415		Door Stop,black ,frzr   (Replaces: 240312406)				$ 21.27
21C	218252201		Screw,no.8 Truss Hd ,10-32ca X 0.500   (Replaces: 218252200)			Immediately	$ 14.18
27A	240396102		Retainer,tall Bottle				$ 19.13
48A	241808201		Bin-door,gallon   (Replaces: 240338202)			Immediately	$ 79.97
F1	242193211		Gasket,seal ,black ,frzr Door ,magnetic   (Replaces: 240514611)				$ 187.11
F2	241872512		Gasket,seal ,black ,refr Door ,magnetic   (Replaces: 240514612)			Immediately	$ 165.39
NI	218490901		Cleaner,stainless Steel				$ 5.58
