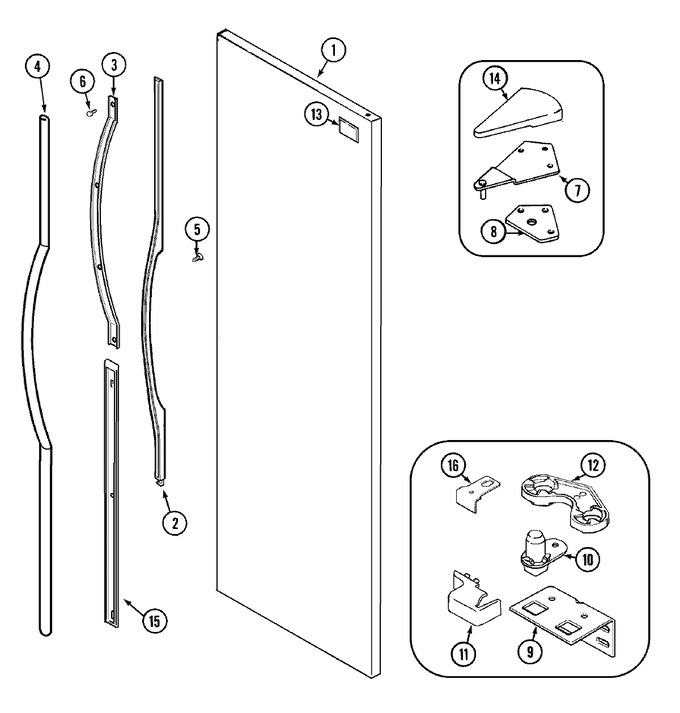

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	61004270		Panel, F.f. Door (alm)	10	Appelez-nous	-
2	61003740		Handle, F.f. Door (alm)	10	Appelez-nous	-
3	61003742		Frame, Handle	10	Appelez-nous	-
4	61004083		Insert, Handle (alm)	10	Appelez-nous	-
5	61003351		Screw, Handle To Frame	10	Appelez-nous	-
6	W10856122		Screw   (Replaces: 61002180)	10			$ 6.98
7	WP3-24838-048		Screw, Upper Hinge   (Replaces: 65275-86)	10			$ 7.00
7	61001971		Hinge, Upper	10	Appelez-nous	-
8	61001922		Shim, Upper Hinge	10			$ 0.71
9	3400112		Screw   (Replaces: 61003128)	10			$ 62.96
9	61001919		Hinge, Lower (alm)	10	Appelez-nous	-
10	61003174		Pin, Lower Hinge	10			$ 6.22
11	61003222		Cover, Lower Hinge (alm)	10	Appelez-nous	-
12	61003647		Closer, Door (natural)	10			$ 10.19
12	W10856122		Screw   (Replaces: 61002180)	10			$ 6.98
13	61002063		Nameplate (alm)	10	Appelez-nous	-
14	61004665		Cover, Upper Hinge (alm)	10	Appelez-nous	-
15	61004080		Trim, Handle Ext. (lower-alm)	10	Appelez-nous	-
16	W10856122		Screw   (Replaces: 61002180)	10			$ 6.98
16	61003471		Stop, Door	10	Appelez-nous	-

    View Diagram in Separate Window       Print Part List
