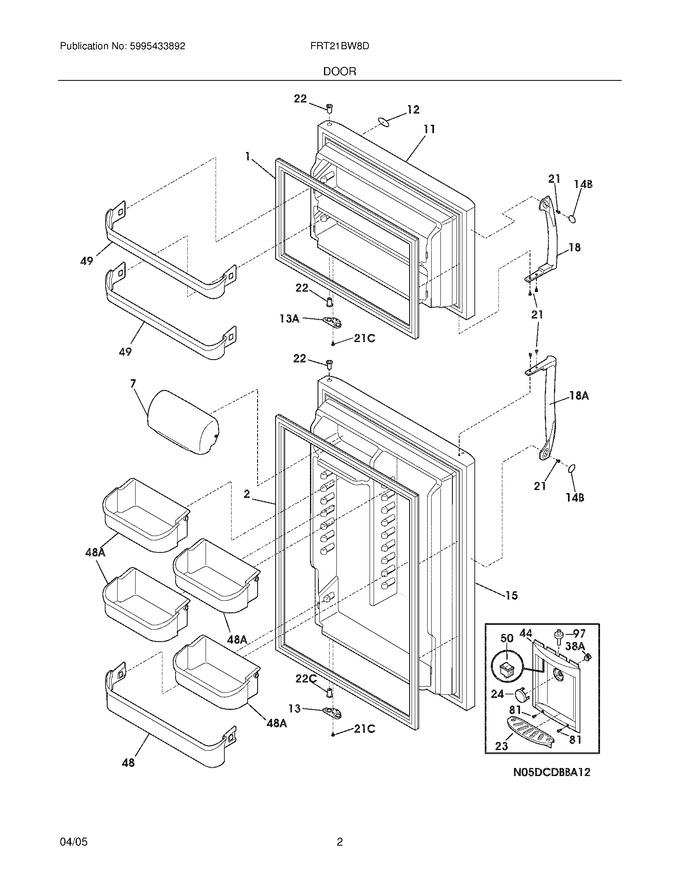

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 7 | 240338313 | Door,dairy ,clear (Replaces: 240338303) |
|
Immediately | $ 80.80 | ||||
| 11 | 240450350 | Door,frzr ,black ,complete Assy |
|
- | |||||
| 12 | 241808601 | Label-nameplate (Replaces: 240572601) |
|
$ 12.69 | |||||
| 13 | 240312422 | Door Stop,black ,refr (Replaces: 240312405) |
|
$ 15.17 | |||||
| 15 | 240450458 | Door,refr ,black ,complete Assy |
|
- | |||||
| 18 | 240339203 | Handle-door,black Refr-lh/frzr-rh |
|
$ 48.30 | |||||
| 21 | 5304515677 | Screw,truss Hd Quad ,no.10-16 X .500 (Replaces: 240383401) |
|
Immediately | $ 19.23 | ||||
| 22 | 5304507147 | Bearing-hinge,black (Replaces: 240527102) |
|
Immediately | $ 7.59 | ||||
| 23 | 241553301 | Drip Tray,white |
|
$ 27.89 | |||||
| 23 | 241553303 | Drip Tray,black |
|
$ 31.52 | |||||
| 24 | 241553603 | Actuator-water,black |
|
$ 10.82 | |||||
| 44 | 241553403 | Cover-module,black |
|
$ 45.89 | |||||
| 48 | 240338101 | Bin-door,pseudo ,bottom |
|
Immediately | $ 52.37 | ||||
| 49 | 240495804 | Bin-door,pseudo ,frzr |
|
Immediately | $ 43.29 | ||||
| 50 | 241611102 | Switch-rocker,black |
|
- | |||||
| 81 | 5304455650 | Screw,hex Washer Head ,8-15a X 0.625 ,low Profile (Replaces: 5308016566) |
|
$ 14.18 | |||||
| 97 | 241603401 | Valve-check |
|
$ 55.70 | |||||
| 13A | 240312415 | Door Stop,black ,frzr (Replaces: 240312406) |
|
$ 21.27 | |||||
| 14B | 240383603 | Plug-button,black ,door Handle |
|
$ 44.65 | |||||
| 18A | 240339208 | Handle-door,black Refr-rh/frzr-lh |
|
- | |||||
| 21C | 218252201 | Screw,no.8 Truss Hd ,10-32ca X 0.500 (Replaces: 218252200) |
|
Immediately | $ 14.18 | ||||
| 22C | 240328404 | Bearing-hinge,black ,upper |
|
$ 22.87 | |||||
| 38A | 241610101 | Switch-actuator |
|
$ 59.85 | |||||
| 48A | 241808201 | Bin-door,gallon (Replaces: 240338202) |
|
Immediately | $ 79.97 | ||||
| F1 | 242193211 | Gasket,seal ,black ,frzr Door ,magnetic (Replaces: 240514611) |
|
$ 187.11 | |||||
| F2 | 241872512 | Gasket,seal ,black ,refr Door ,magnetic (Replaces: 240514612) |
|
Immediately | $ 165.39 | ||||
| NI | 240545201 | Connector-water,straight (Replaces: 240352102) |
|
$ 73.71 | |||||
| NI | 241609901 | Harness-wiring |
|
- | |||||
| NI | 241623001 | Harness-wiring |
|
$ 23.63 | |||||
| NI | 241623201 | Harness-wiring,door |
|
$ 29.11 |
