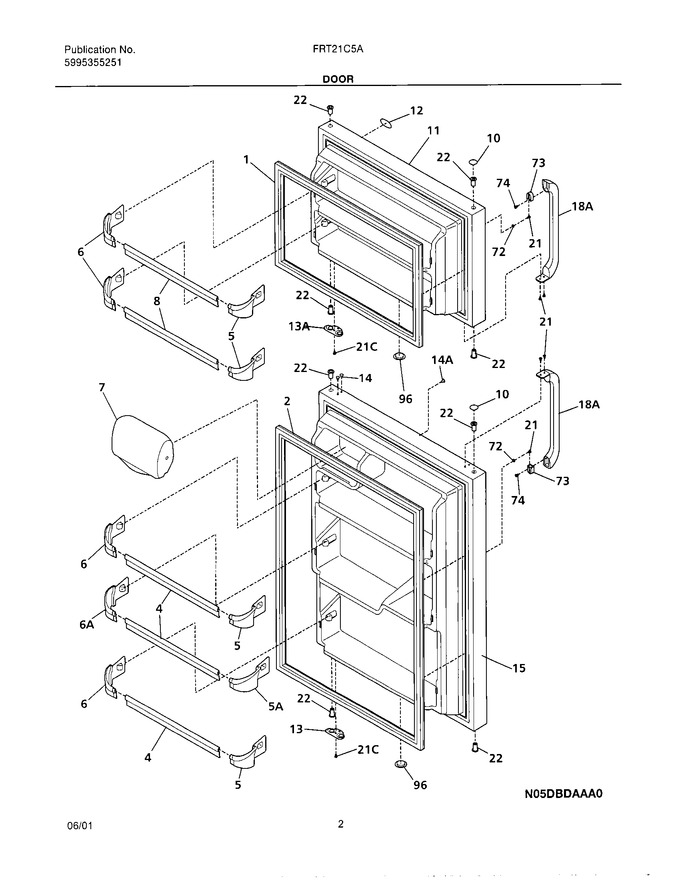

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
4	240331401		Rack-door,20.27`` X 1.72``			Immediately	$ 47.78
5	240311502		Support-door Rack,2 Liter ,rh			Immediately	$ 11.34
6	240311501		Support-door Rack,2 Liter ,lh			Immediately	$ 11.34
7	240337712		Door-dairy,w/o Graphics ,clear   (Replaces: 240337703)			Immediately	$ 36.41
8	240331401		Rack-door,17.99`` X 1.72``   (Replaces: 240331402)			Immediately	$ 47.78
10	240381302		Plug-button,hinge Brg Hole ,bisque ,(2)				$ 19.06
11	240450305		Door-frzr,bisque ,complete Assy		Appelez-nous	-
12	241808601		Label-nameplate,bisque   (Replaces: 240415203)				$ 12.69
13	240312423		Door Stop,bisque ,ref   (Replaces: 240312407)				$ 12.13
14	218915704		Plug-button,bisque		Appelez-nous	-
15	240450405		Door-refr,bisque ,complete Assy				$ 484.03
21	5304515677		Screw,truss Hd Quad ,10-16 X .500   (Replaces: 240383401)			Immediately	$ 19.23
22	5304507146		Bearing-hinge,natural Color ,(8)   (Replaces: 240311201)			Immediately	$ 7.59
72	218397000		Button-handle Mtg, Dovetail				$ 16.74
73	218396700		Block-handle Mtg, Dovetail			Immediately	$ 45.36
74	215503203		Screw,cr Pan Hd `10-16 X 0.500   (Replaces: 215503200)			Immediately	$ 7.09
96	240345503		Plug-foam Hole,white		Appelez-nous	-
13A	240312408		Door Stop,bisque ,frzr		Appelez-nous	-
14A	240428302		Plug-button,screw Type ,bisque		Appelez-nous	-
18A	5304537010		Handle-door,bisque ,w/block & Screw   (Replaces: 218428119)		Appelez-nous	-
21C	218252201		Screw,8 Truss Hd ,10-32ca X 0.500   (Replaces: 218252200)			Immediately	$ 14.18
5A	240331502		Support-door Rack,gallon ,rh			Immediately	$ 13.46
6A	240331501		Support-door Rack,gallon ,lh			Immediately	$ 13.46
F1	241872505		Gasket-frzr Door,white ,magnetic   (Replaces: 240390702)				$ 162.93
F2	242193213		Gasket-refr Door,white ,magnetic   (Replaces: 240390701)			Immediately	$ 190.22

    View Diagram in Separate Window       Print Part List
