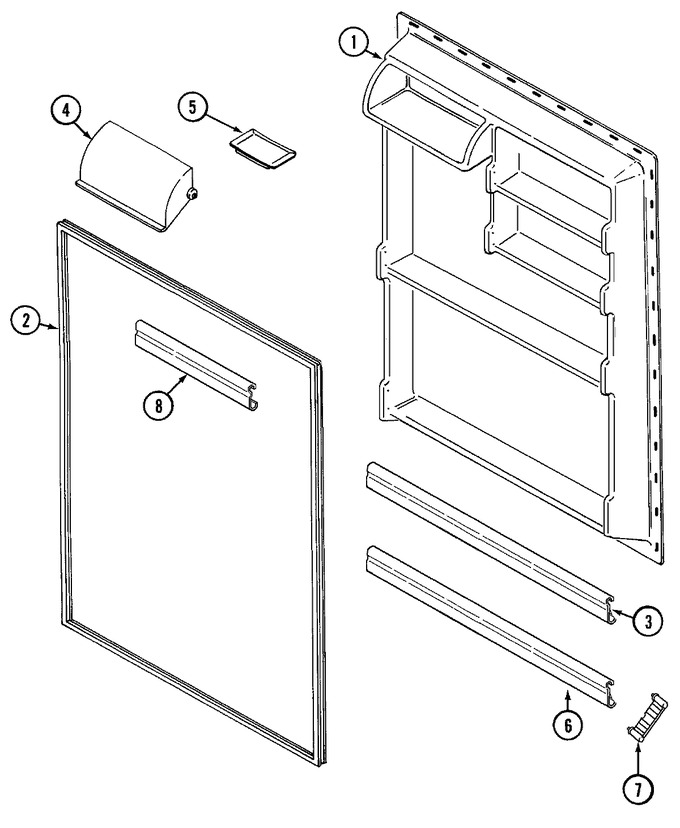

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	65275-5		Screw	12	Appelez-nous	-
1	61001493		Liner, F.f. Door	12	Appelez-nous	-
2	70025-4		Gasket	12			$ 153.02
3	WP70111-108		Trim, Shelf   (Replaces: 70111-15)	12		Immediately	$ 104.35
4	69058-23		Door, Dairy	12	Appelez-nous	-
5	29936-2		Tray, Butter	12	Appelez-nous	-
6	WP70111-108		Trim, Shelf   (Replaces: 70111-18)	12		Immediately	$ 104.35
7	70197-1		Retainer, Shelf Trim	12		Immediately	$ 14.18
8	WP70111-108		Trim, Shelf   (Replaces: 70111-4)	12		Immediately	$ 104.35
