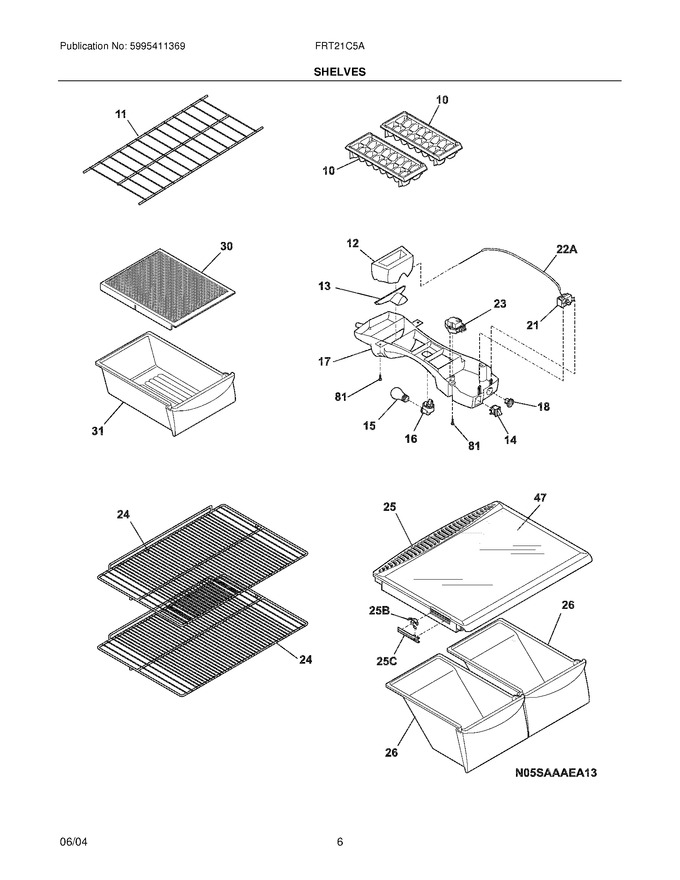

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
10	215667501		Tray,ice Cube ,plastic			Immediately	$ 6.07
11	240358003		Shelf,freezer ,full-width ,wire		Appelez-nous	-
12	240545901		Diffuser-air,top				$ 70.16
13	240362601		Diffuser-air,bottom			Immediately	$ 41.81
14	241554901		Switch-light/lamp				$ 70.88
15	316538904		Light Bulb/lamp,a-15 ,clear ,40 W ,120 V,miniature   (Replaces: 240436702)			Immediately	$ 20.48
16	241559801		Socket-light/lamp   (Replaces: 241500701)				$ 72.68
17	240368105		Control Box   (Replaces: 240368101)			Immediately	$ 130.44
18	240360801		Knob-temp Control				$ 43.95
24	240360904		Shelf,sliding ,wire				$ 72.45
25	240364717		Cover-crisper Pan				$ 184.43
26	240343803		Pan-crisper,(2)   (Replaces: 240343801)			Immediately	$ 171.91
30	240361801		Cover,meat Pan Hanger ,drop Through		Appelez-nous	-
31	240530811		Pan-meat,w/o Graphics ,clear   (Replaces: 240530803)			Immediately	$ 135.77
47	240350609		Insert-pan Cover,glass			Immediately	$ 162.30
81	5304455650		Screw   (Replaces: 5308016566)				$ 14.18
22A	5303916855		Tube,sensor Sleeve ,plastic ,clear				$ 60.96
25B	5304492617		Control-humidity   (Replaces: 240361202)			Immediately	$ 8.69
25C	5304492617		Damper,humidity Cont.   (Replaces: 240361301)			Immediately	$ 8.69
F21	241537103		Control-temperature   (Replaces: 5304421256)			Immediately	$ 72.31
F23	215846602		Timer-defrost   (Replaces: 240371001)			Immediately	$ 28.20
NI	5304455649		Screw   (Replaces: 5303001259)				$ 17.01
NI	240392601		Seal-diffuser				$ 6.57
NI	240388701		Wiring Harness,control Box			Immediately	$ 80.09
