SELECT A DIAGRAM

01 - Cover


03 - Door


05 - Cabinet


07 - Shelves


09 - System


11 - Ice Maker

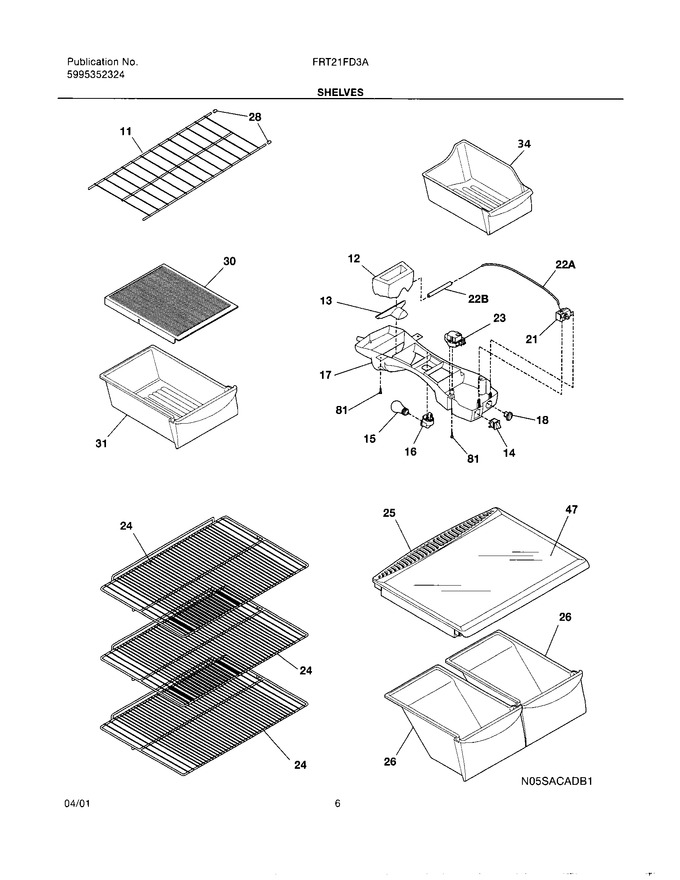

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
11	240358003		Shelf-freezer		Appelez-nous	-
12	240380201		Diffuser-air,top		Appelez-nous	-
13	240362601		Diffuser-air,bottom			Immediately	$ 41.81
14	240505801		Switch-light/lamp   (Replaces: 240413601)				$ 66.63
15	5303001179		Light Bulb/lamp,40 W		Appelez-nous	-
16	241559801		Socket-light/lamp   (Replaces: 241500701)				$ 72.68
17	240368105		Box-control   (Replaces: 240368101)			Immediately	$ 130.44
18	240360801		Knob-control				$ 43.95
21	5304418228		Control-temperature				$ 188.06
22	5303916855		Tube,sensor Sleeve ,plastic ,clear				$ 60.96
22	218731105		Tube,pvc ,white ,@ Air Diffuser ,insulator		Appelez-nous	-
23	215846602		Timer-defrost,60 Hz ,120 V ,10 Hour/30 Min   (Replaces: 215846606)			Immediately	$ 28.20
24	240360904		Shelf-sliding,refr				$ 72.45
25	240364756		Cover-crisper Pan		Appelez-nous	-
26	240343803		Pan-crisper,(2)   (Replaces: 240343801)			Immediately	$ 171.91
28	3201150		End Cap-shelf,protector ,frzr Shelf				$ 4.57
30	240361801		Hanger-meat Pan,drop Thru		Appelez-nous	-
31	240530811		Pan-meat,w/o Graphics ,clear   (Replaces: 240354203)			Immediately	$ 135.77
34	240385201		Container-ice				$ 97.83
47	240350609		Insert-pan Cover,glass			Immediately	$ 162.30
81	5304455650		Screw   (Replaces: 5308016566)				$ 14.18
NI	240388701		Wiring Harness,control Box			Immediately	$ 80.09
NI	5303299664		Spacer-shelf				$ 24.10
NI	5304455649		Screw   (Replaces: 5303001259)				$ 17.01
NI	240392601		Seal-diffuser				$ 6.57

    View Diagram in Separate Window       Print Part List
