01 - Base
02 - Cabinet
03 - Control Panel
04 - Transmission

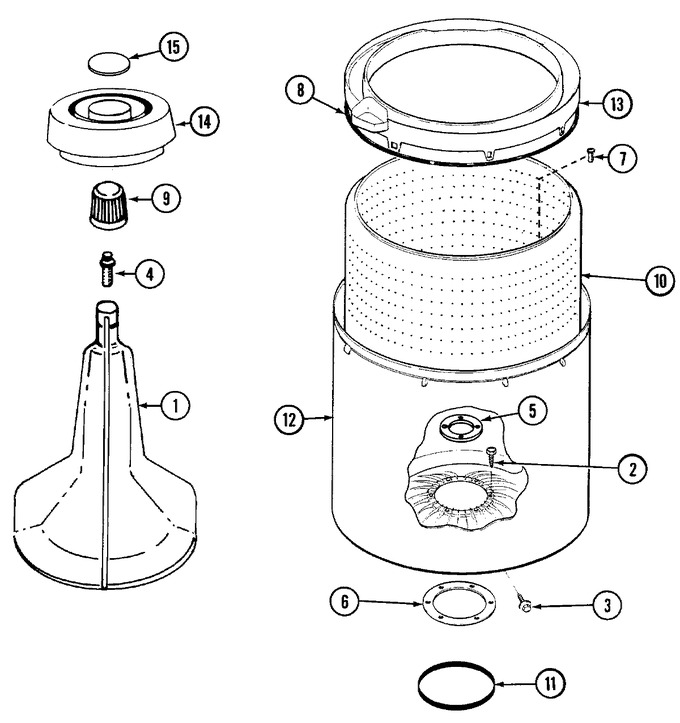

05 - Tub
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 35-3580 | Agitator | 10 |
|
- | ||||
| 2 | 25-7947 | Screw Shoulder | 10 |
|
- | ||||
| 3 | WP22002933 | Screw (Replaces: 25-7953) | 10 |
|
$ 6.91 | ||||
| 4 | WPW10309247 | Screw, Agitator Retention (Replaces: 25-7948) | 10 |
|
$ 32.57 | ||||
| 5 | 35-3685 | Gasket, Basket To Centerpost | 10 |
|
$ 36.70 | ||||
| 6 | 35-3686 | Gasket, Tub To Housing | 10 |
|
$ 5.85 | ||||
| 7 | WP3400504 | Screw (Replaces: 25-7965) | 10 |
|
$ 6.47 | ||||
| 8 | 35-2328 | Seal, Tub Top | 10 |
|
$ 49.43 | ||||
| 9 | 35-2733 | Cap, Agitator | 10 |
|
- | ||||
| 10 | 35-3687 | Basket, Spin | 10 |
|
- | ||||
| 11 | 35-2978 | Seal, Tub/housing | 10 |
|
$ 5.85 | ||||
| 12 | 35-3700 | Tub Assembly (plastic) | 10 |
|
$ 236.85 | ||||
| 13 | 35-3578 | Top, Tub | 10 |
|
- | ||||
| 14 | 35-2550 | Dispenser, Rinse | 10 |
|
- | ||||
| 15 | 21001269 | Insert, Rinse Dispenser | 10 |
|
- |
