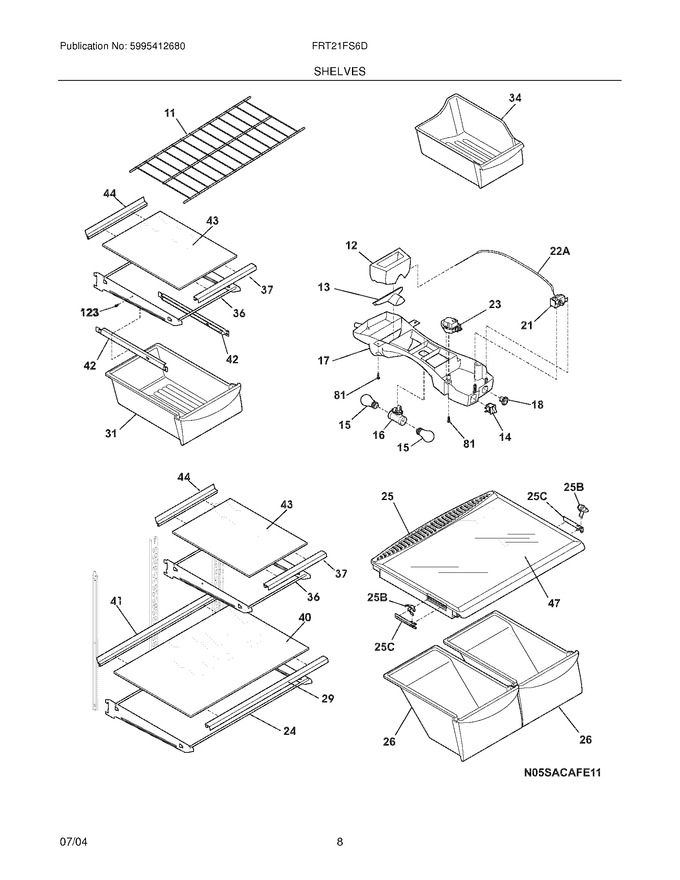

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 11 | 240358003 | Shelf,freezer ,full-width ,wire |
|
- | |||||
| 12 | 240545901 | Diffuser-air,top |
|
$ 70.16 | |||||
| 13 | 240362601 | Diffuser-air,bottom |
|
Immediately | $ 41.81 | ||||
| 15 | 316538904 | Light Bulb (Replaces: 241555401) |
|
Immediately | $ 20.48 | ||||
| 16 | 240364201 | Socket-light/lamp,dual |
|
$ 100.50 | |||||
| 17 | 240368105 | Control Box (Replaces: 240368101) |
|
Immediately | $ 130.44 | ||||
| 18 | 240360801 | Knob-temp Control |
|
$ 43.95 | |||||
| 24 | 240373105 | Frame-shelf,cantilever ,full Width |
|
$ 143.98 | |||||
| 25 | 240364718 | Cover-crisper Pan |
|
$ 164.62 | |||||
| 26 | 240343803 | Pan-crisper,(2) |
|
Immediately | $ 171.91 | ||||
| 29 | 240357701 | Trim-shelf,24.48`` ,front |
|
$ 70.82 | |||||
| 31 | 240530811 | Pan-meat,w/o Graphics ,clear (Replaces: 240530903) |
|
Immediately | $ 135.77 | ||||
| 34 | 240385201 | Container,ice Bin |
|
$ 97.83 | |||||
| 36 | 240373106 | Frame,cantil Shelf ,half Width |
|
$ 105.63 | |||||
| 37 | 240357702 | Trim-shelf,11.95`` ,front |
|
$ 63.80 | |||||
| 40 | 240443323 | Glass-shelf,24.45`` X 17.60`` ,full Shelf |
|
- | |||||
| 41 | 240357801 | Trim-shelf,24.48`` ,rear |
|
$ 56.12 | |||||
| 42 | 240530701 | Track,meat Pan Hanger ,rh |
|
Immediately | $ 65.98 | ||||
| 42 | 240530601 | Track,meat Pan Hanger ,lh |
|
Immediately | $ 65.98 | ||||
| 43 | 240443318 | Glass-shelf,11.92`` X 17.60`` ,half Shelf |
|
$ 73.38 | |||||
| 44 | 240357802 | Trim-shelf,11.95`` ,rear |
|
$ 50.76 | |||||
| 47 | 240350609 | Insert-pan Cover,glass (Replaces: 240350654) |
|
Immediately | $ 162.30 | ||||
| 81 | 5304455650 | Screw (Replaces: 5308016566) |
|
$ 14.18 | |||||
| 123 | 215005101 | Screw,hanger/rlr Mtg ,8-10 X 0.438 (Replaces: 215005100) |
|
$ 14.89 | |||||
| 22A | 5303916855 | Tube,sensor Sleeve ,plastic ,clear |
|
$ 60.96 | |||||
| 25B | 5304492617 | Control-humidity (Replaces: 240361201) |
|
Immediately | $ 8.69 | ||||
| 25C | 5304492617 | Damper,humidity Cont. (Replaces: 240361301) |
|
Immediately | $ 8.69 | ||||
| F14 | 241554901 | Switch-light/lamp |
|
$ 70.88 | |||||
| F21 | 241537103 | Control-temperature (Replaces: 5304421256) |
|
Immediately | $ 72.31 | ||||
| F23 | 215846602 | Timer-defrost (Replaces: 240371001) |
|
Immediately | $ 28.20 | ||||
| NI | 5304455649 | Screw (Replaces: 5303001259) |
|
$ 17.01 |
