01 - Drawer Pans (accessory Only)
02 - Warming Drawer
New Model Search:

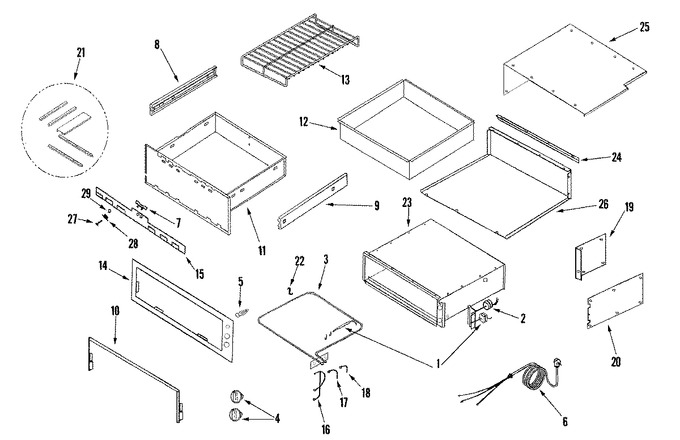

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10236043 | Screw, 3/8 Hex Head (Replaces: 78001032) | 10 |
|
$ 65.26 | ||||
| 1 | W11214483 | Screw, Phillips Hd (Replaces: 78001035) | 10 |
|
$ 12.62 | ||||
| 1 | 78001001 | Themostat Assembly | 10 |
|
- | ||||
| 2 | 78001002 | Timer Control | 10 |
|
$ 211.97 | ||||
| 3 | 78001003 | Element, Heat | 10 |
|
- | ||||
| 3 | WP489399 | Screw, 5/16 Hex Head 1/4`` (Replaces: 78001034) | 10 |
|
$ 6.26 | ||||
| 4 | 78001004 | Knob, Timer/thermostat | 10 |
|
$ 27.54 | ||||
| 5 | 78001005 | Light, Indicator Assembly | 10 |
|
- | ||||
| 6 | WP489399 | Screw, 5/16 Hex Head 1/4`` (Replaces: 78001034) | 10 |
|
$ 6.26 | ||||
| 6 | 78001006 | Cord, Power | 10 |
|
- | ||||
| 7 | 78001007 | Knob, Vent Slide | 10 |
|
- | ||||
| 8 | 78001033 | Screw, 3/8 Flat (ph/hd) | 10 |
|
- | ||||
| 8 | 78001008 | Glide, Drawer (lt) | 10 |
|
- | ||||
| 9 | 78001033 | Screw, 3/8 Flat (ph/hd) | 10 |
|
- | ||||
| 9 | 78001009 | Glide, Drawer (rt) | 10 |
|
- | ||||
| 10 | 78001010 | Gasket Assembly | 10 |
|
- | ||||
| 10 | 78001033 | Screw, 3/8 Flat (ph/hd) | 10 |
|
- | ||||
| 11 | 78001011 | Frame, Drawer | 10 |
|
- | ||||
| 12 | 78001012 | Pan, Drawer (30``) | 10 |
|
- | ||||
| 13 | 78001013 | Rack, Wire Drawer | 10 |
|
- | ||||
| 14 | 78001014 | Plate, Drawer Face | 10 |
|
- | ||||
| 15 | 78001015 | Vent Slide | 10 |
|
- | ||||
| 16 | 78001016 | Wire Harness (red) | 10 |
|
- | ||||
| 17 | 78001017 | Wire Harness (wht) | 10 |
|
- | ||||
| 18 | 78001018 | Wire Harness (blk) | 10 |
|
- | ||||
| 19 | 78001019 | Cover, Wire Box | 10 |
|
- | ||||
| 19 | WP489399 | Screw, 5/16 Hex Head 1/4`` (Replaces: 78001034) | 10 |
|
$ 6.26 | ||||
| 20 | W10236043 | Screw, 3/8 Hex Head (Replaces: 78001032) | 10 |
|
$ 65.26 | ||||
| 20 | 78001020 | Cover, Control Panel | 10 |
|
- | ||||
| 21 | 78001021 | Assy., Pan Support Rail | 10 |
|
- | ||||
| 22 | 78001022 | Clip, J | 10 |
|
- | ||||
| 23 | 78001023 | Cavity, Drawer | 10 |
|
- | ||||
| 24 | 78001024 | Bracket, Anti-tip | 10 |
|
- | ||||
| 25 | 78001025 | Cover, Exterior Top | 10 |
|
- | ||||
| 25 | W10236043 | Screw, 3/8 Hex Head (Replaces: 78001032) | 10 |
|
$ 65.26 | ||||
| 25 | 78001033 | Screw, 3/8 Flat (ph/hd) | 10 |
|
- | ||||
| 26 | 78001026 | Cover, Exterior Bottom | 10 |
|
- | ||||
| 26 | WP489399 | Screw, 5/16 Hex Head 1/4`` (Replaces: 78001034) | 10 |
|
$ 6.26 | ||||
| 27 | M0282005 | Nut, Hex (6-32) (Replaces: 78001027) | 10 |
|
$ 7.07 | ||||
| 28 | 78001028 | Lock Washer | 10 |
|
- | ||||
| 29 | 78001029 | Washer, Shoulder | 10 |
|
- | ||||
| 30 | 78001036 | Bracket, Magnet | 10 |
|
- | ||||
| 31 | 78001037 | Pull Magnet (14 Lb.) | 10 |
|
- | ||||
| 32 | 74008508 | Manual, Use & Care | 10 |
|
- |
