SELECT A DIAGRAM

01 - Console


02 - Cabinet


03 - Door


04 - Tub, Literature And Optional


05 - Dishrack And Panel


06 - Pump And Motor


07 - Wiring Harness

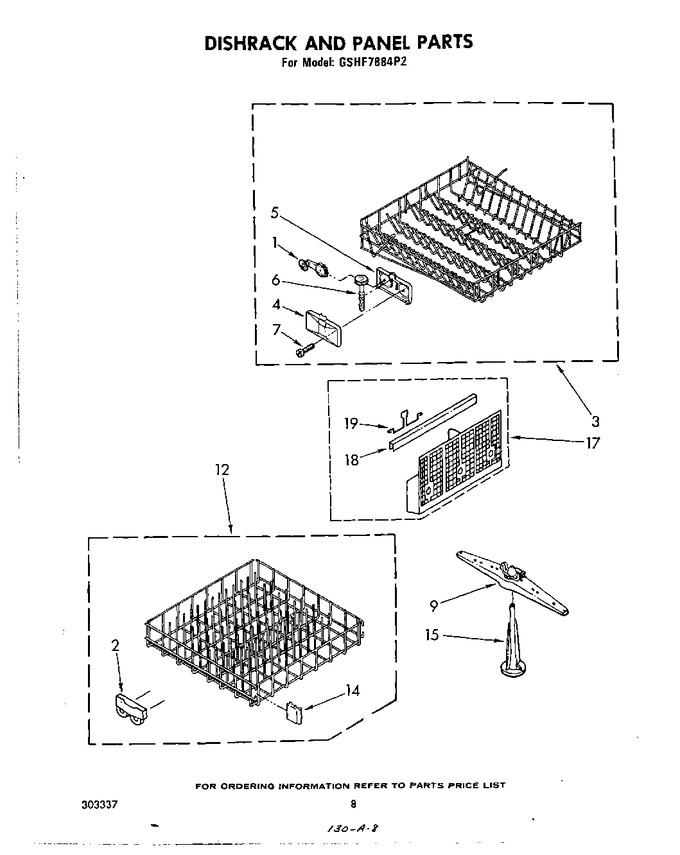

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	302025		Wheel & Gear Assembly (4)		Appelez-nous	-
2	4317933		Wheel & Shroud Assembly (4)   (Replaces: 717509)				$ 43.80
3	W11169039		Dishrack, Upper   (Replaces: 303200)			Immediately	$ 182.83
4	302029		Cover, Housing (2)		Appelez-nous	-
5	302028		Housing, Gear (2)			Immediately	$ 108.39
6	302026		Worm, Dishrack (2)		Appelez-nous	-
7	WP9741232		Screw (8)   (Replaces: 301077)			Immediately	$ 4.56
9	302813		Spray Arm Assembly		Appelez-nous	-
12	W10311986		Dishrack, Lower   (Replaces: 302058)			Immediately	$ 169.33
14	719964		Bumper (2)		Appelez-nous	-
15	302030		Tower		Appelez-nous	-
17	301994		Silverware Basket Assembly		Appelez-nous	-
18	717528		Trim, Basket		Appelez-nous	-
19	300086		Handle, Basket		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
