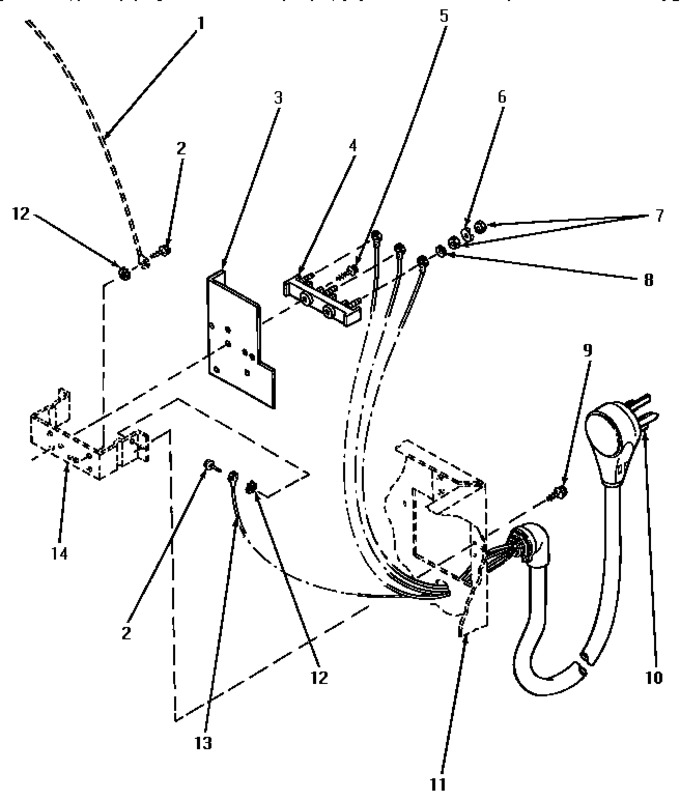

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	Y00000000		See Note Ground Wire, Green		Appelez-nous	-
2	WP3351614		Screw, 10-24x3/8 Hex   (Replaces: 20530)			Immediately	$ 6.26
3	56087		Shield,terminal Block		Appelez-nous	-
4	58555		Terminal Block		Appelez-nous	-
5	56131		Screw,10bt X 1 Tapping		Appelez-nous	-
6	51474		Washer,13/64idx1/2odx.				$ 4.35
7	Q6163		Nut				$ 2.09
8	56552		Lockwasher		Appelez-nous	-
9	WP27001200		Hex Head Scrw   (Replaces: 25723)				$ 6.91
10	57637		Assy,lead-in Cord		Appelez-nous	-
11	Y00000000		See Note Cabinet		Appelez-nous	-
12	03815		Lockwasher,no.10 Ext Shk				$ 3.34
13	Y00000000		See Note Ground Wire, Green From Power Cord		Appelez-nous	-
14	Y00000000		See Note Terminal Block Bracket		Appelez-nous	-
