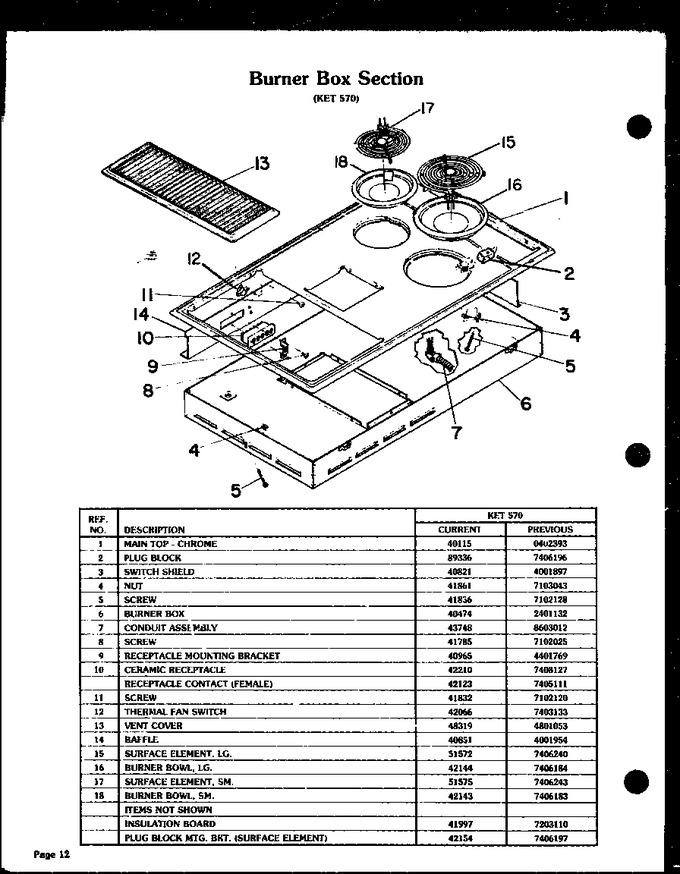

01 - Burner Box Section


02 - Burner Box Section


03 - Control Section


04 - Page 1


05 - Ventilation


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	0040115		Sub 300186, Main Top, Chrome		Appelez-nous	-
2	330031		Kit, Top Element Term Block   (Replaces: Y0089336)			Immediately	$ 14.48
3	Y0040821		Switch Shield Et-590 595		Appelez-nous	-
4	0041861		Nut 1/4-20 Sq. Et590 595		Appelez-nous	-
5	Y0041836		Screw 1/4-20-4`` 590 595		Appelez-nous	-
6	0040474		Burner Box W/a W/vent Ket595		Appelez-nous	-
7	Y0043748		5651118 C		Appelez-nous	-
8	Y0041785		Screw, No.6-32 X .250 Pan Hd Ph		Appelez-nous	-
9	Y0040965		Plug Block Mtg Brkt Et590 595		Appelez-nous	-
10	Y0042210		Plug Block Modular Top		Appelez-nous	-
10	Y0042123		Element, Contact-module Top		Appelez-nous	-
11	Y0041832		Screw No.8x3/8 Sq. Drive		Appelez-nous	-
12	Y0042066		Limit Switch-open 90		Appelez-nous	-
13	Y0048319		Sub 48317, Vent Cover, Pol		Appelez-nous	-
14	Y0040851		Plug Block Baffle Ket570		Appelez-nous	-
15	WP3191454		Element, 5 Turn (2100w) 8``   (Replaces: Y0051572)				$ 163.63
16	WPW10196405		Bowl, Drip (8``-chr)   (Replaces: Y0042144)			Immediately	$ 15.56
17	WP3191455		Surface Element, 6`` 240 V. 125   (Replaces: Y0051575)				$ 133.85
18	WPW10196406		Bowl, Drip (6``-chr)   (Replaces: Y0042143)			Immediately	$ 12.05
NI	Y0041997		Insulation Board		Appelez-nous	-
NI	Y0042154		Sub 302765, Mounting Clip		Appelez-nous	-
