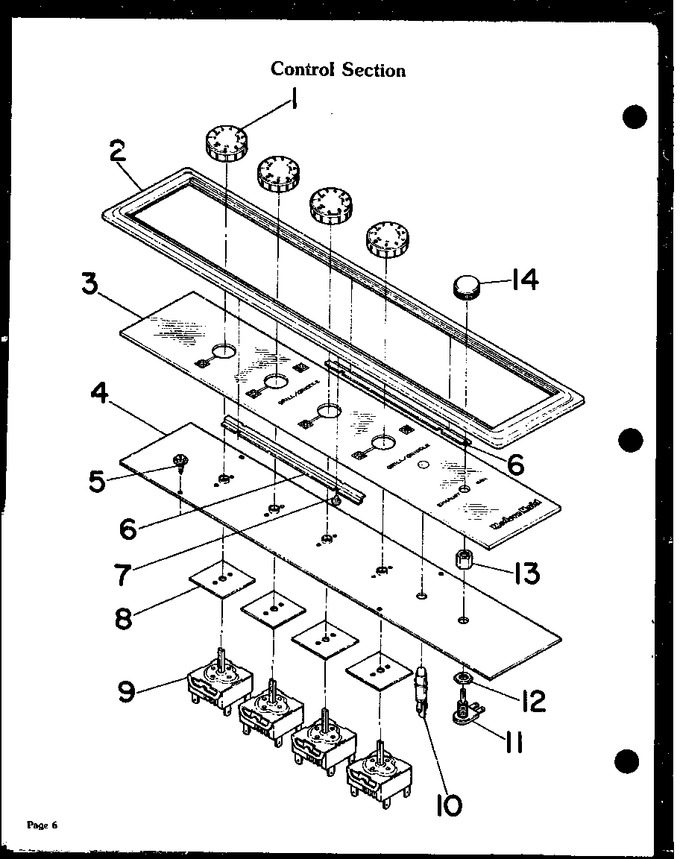

01 - Control Section
02 - Page 1
03 - Ventilation
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | Y0042632 | Knob, Infinite Switch |
|
- | |||||
| 2 | Y0041074 | Sub 41072, Cntrl. Pnl. Trim |
|
- | |||||
| 3 | 42803 | Liner |
|
- | |||||
| 4 | 40999 | Switch Mounting Bracket |
|
- | |||||
| 5 | Y41808 | Screw |
|
- | |||||
| 6 | Y0040962 | Glass Retainer Ket595-590 |
|
- | |||||
| 7 | 41819 | Screw-glass Retainer |
|
- | |||||
| 8 | Y0041991 | Switch Gasket Xet-490 |
|
- | |||||
| 9 | WP3400882 | Screw, No.8-32 X 3/16 Pph (Replaces: Y0041768) |
|
Immediately | $ 6.47 | ||||
| 9 | IS6500-209 | Sub 51726, Infinite Switch (Replaces: 0042062) |
|
Immediately | $ 74.35 | ||||
| 10 | Y0042183 | Indicator Light |
|
- | |||||
| 11 | 0042048 | Switch, Rotary-10a,120v |
|
- | |||||
| 14 | Y0042636 | Fan Switch Knob |
|
$ 16.09 | |||||
| NI | Y0041778 | Screw 6-32x3/16 Slo Cook Sw |
|
- |
