01 - Top And Cabinet

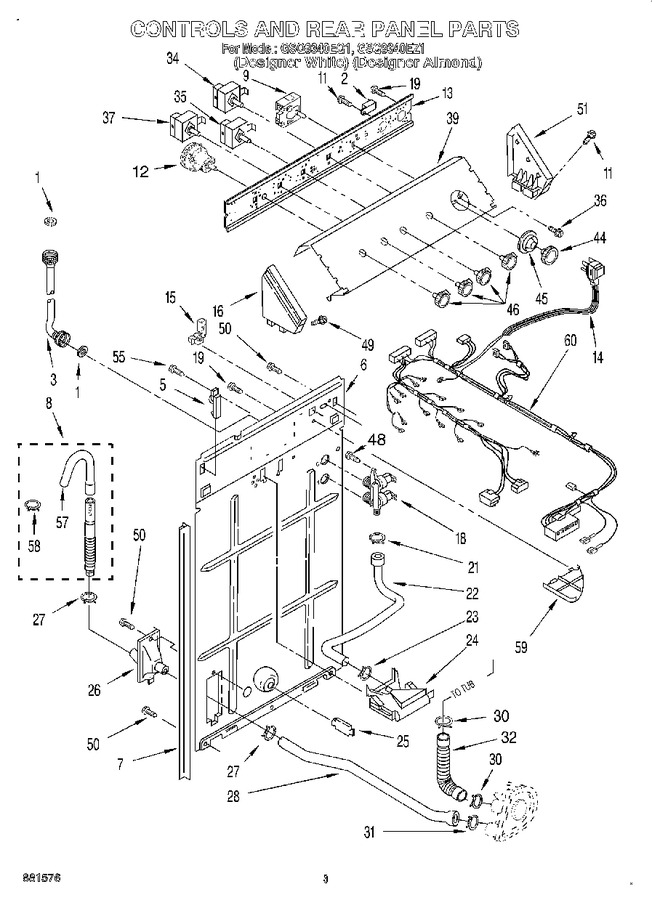

02 - Controls And Rear Panel


03 - Agitator, Basket And Tub


04 - Brake, Clutch, Gearcase, Motor And Pump


05 - Machine Base


06 - Wiring Harness


07 - Brake And Drive Tube


08 - Gearcase


09 - Water System


10 - Miscellaneous, Lit/optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP16123		Washer, Water Inlet Hose (4) (1-1/16 X 5/8)   (Replaces: 16123)				$ 6.93
2	WP694419		Buzzer, Mini   (Replaces: 694419)				$ 114.90
3	WP89503		Hose, Water Inlet (2) ((red Coupler))   (Replaces: 3949369)			Immediately	$ 21.68
3	WP89503		Hose, Water Inlet (2) ((blue Coupler))   (Replaces: 3949368)			Immediately	$ 21.68
5	387402		Hinge, Console (2)				$ 5.84
6	3357978		Panel, Rear		Appelez-nous	-
7	WP62747		Pad, Rear Panel   (Replaces: 62747)				$ 23.63
8	285666		Hose, Drain (9 Ft.) (not Included)   (Replaces: 661577)			Immediately	$ 56.11
8	285702		Extension, Drain Hose (21 Inches) (not Included)   (Replaces: 3357090)			Immediately	$ 54.81
8	285664		Hose, Drain (4 Ft.)   (Replaces: 3951609)			Immediately	$ 33.20
9	3951912		Timer, Control (60 Hz.) (motor Not A Service Part)		Appelez-nous	-
11	WP90767		Screw, 8a X 3/8   (Replaces: 90767)			Immediately	$ 7.04
12	W10335056		Switch, Water Level   (Replaces: 3366846)			Immediately	$ 82.66
13	WP3948608		Bracket, Control   (Replaces: 3948608)				$ 104.57
14	W10820044		Cord, Power (power Cord Only Without Harnness)   (Replaces: 3948063)				$ 128.46
15	3949468		Strain Relief, Power Cord		Appelez-nous	-
16	3358529		Cap, End (l.h.) (almond Model)		Appelez-nous	-
16	3358528		Cap, End (l.h.) (white Model)		Appelez-nous	-
18	285805		Valve, Water Mixing   (Replaces: 3360392)			Immediately	$ 49.57
19	WP3351614		Screw, 10-24 X 3/8 (2)   (Replaces: 90864)			Immediately	$ 6.26
21	WP596669		Clamp, Hose   (Replaces: 370451)			Immediately	$ 7.56
22	WP3357328		Hose, Vacuum Break   (Replaces: 3357328)			Immediately	$ 22.30
23	WP596669		Clamp, Hose   (Replaces: 371503)			Immediately	$ 7.56
24	WP3360977		Break, Vacuum   (Replaces: 387606)			Immediately	$ 45.41
25	WP8519200		Support, Rear Panel   (Replaces: 63290)			Immediately	$ 17.01
26	WPW10358149		Connector, Drain Hose   (Replaces: 3361809)			Immediately	$ 43.34
27	WP356138		Clamp, Hose   (Replaces: 356138)			Immediately	$ 7.67
28	3359816		Hose, Pump To Drain Connector		Appelez-nous	-
30	WP616099		Clamp, Hose   (Replaces: 3363366)			Immediately	$ 7.03
31	WP371502		Clamp, Hose   (Replaces: 371507)				$ 10.38
32	285871		Hose, Pump To Tub (includes No.30)   (Replaces: 3950340)			Immediately	$ 24.01
34	WPW10168262		Switch (4 Position)   (Replaces: 3949187)				$ 116.78
35	WPW10168257		Switch (3 Position)   (Replaces: 661613)				$ 120.00
36	W10915367		Screw, Timer Mounting (10-32 X 1) (2)   (Replaces: 3400808)		Appelez-nous	-
37	661614		Switch, Water Temperature				$ 56.07
39	3950673		Panel, Console (white Model)		Appelez-nous	-
39	3950674		Panel, Console (almond Model)		Appelez-nous	-
44	W10807860		Knob, Timer (white Model)   (Replaces: 3948580)			Immediately	$ 44.97
44	WP3957823		Knob, Timer (almond Model)   (Replaces: 3948582)				$ 46.47
45	WP3957841		Dial, Timer (white Model)   (Replaces: 3950762)				$ 40.82
45	3950763		Dial, Timer (almond Model)		Appelez-nous	-
46	WP3957796		Knob, Controls (white Model)   (Replaces: 3950759)			Immediately	$ 49.35
46	3950760		Knob, Controls (almond Model)		Appelez-nous	-
48	WP9740848		Screw   (Replaces: 9740848)			Immediately	$ 7.07
49	WP388326		Screw, 8-18 X 1.25 (panel To Top)   (Replaces: 388326)				$ 7.30
50	WP3390631		Screw, 8-18 X 1/2   (Replaces: 62863)				$ 7.04
51	3358514		Cap , End (r.h.) (almond Model)		Appelez-nous	-
51	3358513		Cap , End (r.h.) (white Model)		Appelez-nous	-
55	WP488729		Screw   (Replaces: 487909)			Immediately	$ 7.01
57	WP3357027		Nozzle, Hose Drain   (Replaces: 3357027)				$ 83.88
58	WP3357331		Clamp, Drain Hose   (Replaces: 3366913)				$ 6.80
59	3348424		Sheild, Suds		Appelez-nous	-
60	3952813		Harness, Wiring (includes Power Cord) (for Detail See Parts Page) Also See Clips		Appelez-nous	-
