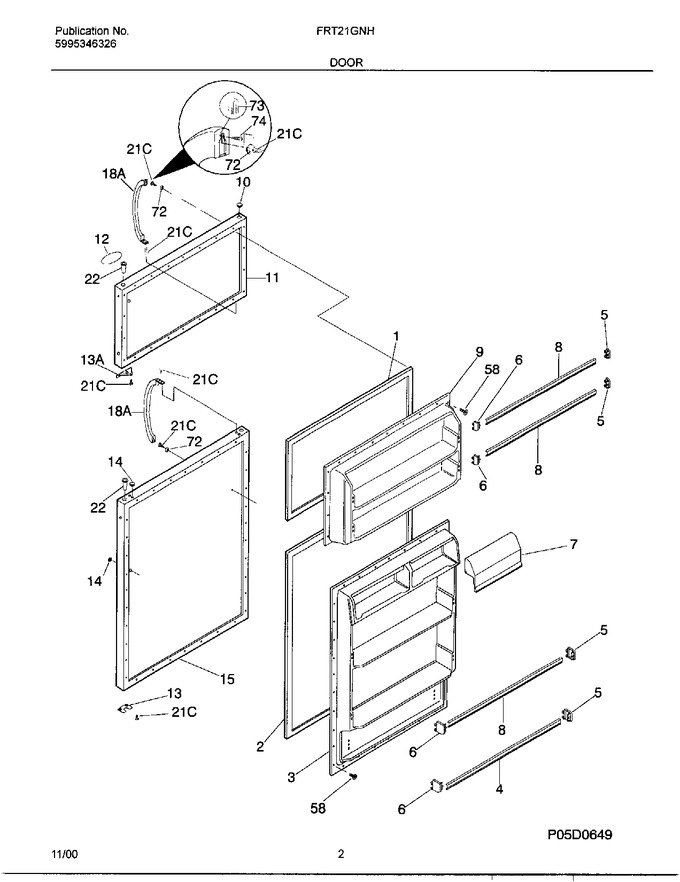

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	215608972		Gasket-frzr Door,white ,magnetic		Appelez-nous	-
2	218730609		Gasket-refr Door, White, Magnetic				$ 207.27
3	218658901		Panel-inner Door, Refr		Appelez-nous	-
4	5303281387		Rack-door, 25.25`` X 1.58``		Appelez-nous	-
5	5303007295		Support-door Rack, Rh				$ 32.55
6	5303007297		Support-door Rack, Lh				$ 64.58
7	5303295112		Door-dairy		Appelez-nous	-
8	5303281388		Rack-door, 25.56`` X 1.58``		Appelez-nous	-
9	5318540802		Panel-inner Door, Frzr		Appelez-nous	-
10	5308000134		Plug-button, White, Hinge Brg Hole				$ 5.62
10	5303001308		Plug-button, Almond, Hinge Brg Hole		Appelez-nous	-
11	5303917811		Panel-frzr Door, Almond, W/insulation		Appelez-nous	-
11	5303917810		Panel-frzr Door, White, W/insulation		Appelez-nous	-
12	218917602		Label-nameplate,almond		Appelez-nous	-
12	218917601		Label-nameplate,white				$ 2.98
13	218800300		Door Stop,plated		Appelez-nous	-
14	218915702		Plug-button,almond		Appelez-nous	-
14	240494001		Plug-button, White   (Replaces: 218915701)			Immediately	$ 18.20
15	5303917812		Panel-refr Door, White, W/insul & Brace		Appelez-nous	-
15	5303917813		Panel-refr Door, Almond, W/insul & Brace		Appelez-nous	-
22	218519300		Bearing-hinge				$ 14.60
58	218781101		Screw,pan Head ,8-18 X 0.625   (Replaces: 218781100)				$ 15.60
72	218397000		Button-handle Mtg, Dovetail				$ 16.74
73	218396700		Block-handle Mtg, Dovetail			Immediately	$ 45.36
74	215503203		Screw,cr Pan Hd `10-16 X 0.500   (Replaces: 215503200)			Immediately	$ 7.09
13A	218249002		Door Stop, Almond, Frzr Section				$ 47.88
13A	218249001		Door Stop, White, Frzr Section				$ 82.06
18A	218428101		Handle-door, White, W/block & Screw			Immediately	$ 22.73
18A	218428102		Handle-door, Almond, W/block & Screw		Appelez-nous	-
21C	218252201		Screw,8 Truss Hd ,10-32ca X 0.500   (Replaces: 218252200)			Immediately	$ 14.18
NI	5303917276		Insulation-door, Fiberglass, (bulk)				$ 330.91

    View Diagram in Separate Window       Print Part List
