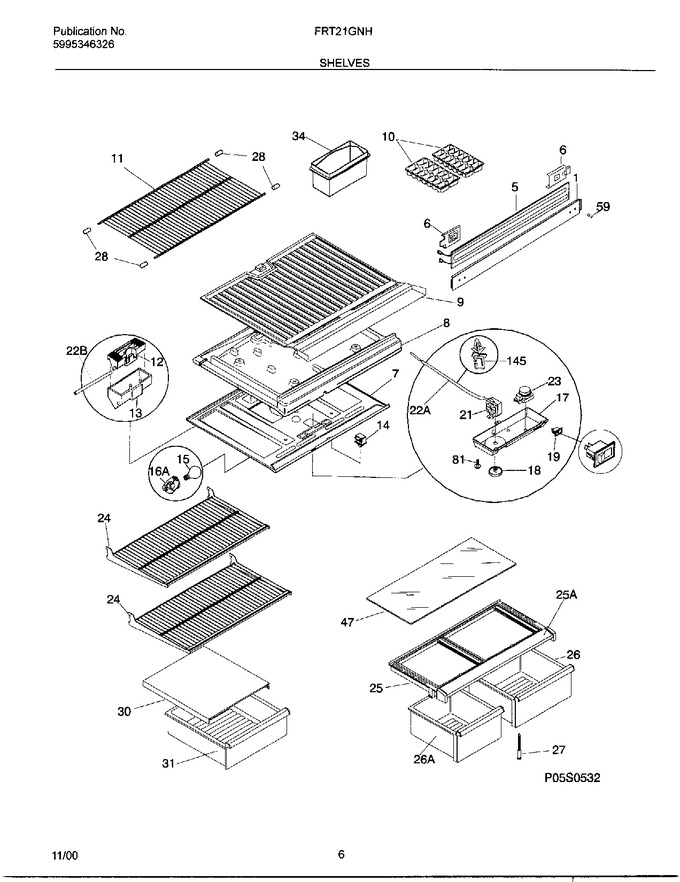

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 218651901 | Mullion, Almond |
|
- | |||||
| 1 | 218651900 | Mullion, White |
|
- | |||||
| 6 | 218845602 | Tapping Plate,mullion Mtg |
|
$ 14.86 | |||||
| 7 | 218866101 | Top Panel-refr |
|
- | |||||
| 8 | 218909706 | Divider,styrofoam ,w/foil Tape |
|
- | |||||
| 9 | 218865900 | Bottom Panel-frzr |
|
$ 43.29 | |||||
| 10 | 215667501 | Tray-ice,plastic (optiional Accessory) |
|
Immediately | $ 6.07 | ||||
| 11 | 5303288243 | Shelf-freezer, Fixed/flat, Full Width, Wire |
|
- | |||||
| 12 | 218730000 | Deflector-air |
|
$ 57.60 | |||||
| 13 | 218631001 | Cover-air Deflector |
|
$ 55.19 | |||||
| 15 | 5303001179 | Light Bulb/lamp,40 W |
|
- | |||||
| 17 | 5304414816 | Control Box |
|
- | |||||
| 18 | 5303311079 | Knob-temp Control |
|
- | |||||
| 24 | 5303209232 | Shelf-cantilever,full ,(3) |
|
- | |||||
| 25 | 5303206538 | Cover-crisper Pan |
|
- | |||||
| 26 | 218884502 | Pan-crisper,14.35`` Wide ,rh |
|
- | |||||
| 27 | 5303205987 | Support-crisper Cvr, Adjustable |
|
$ 48.41 | |||||
| 28 | 3201150 | End Cap-shelf,protector ,frzr Shelf |
|
$ 4.57 | |||||
| 30 | 08009763 | Cover-meat Pan |
|
$ 102.27 | |||||
| 31 | 218884402 | Pan-meat |
|
$ 167.13 | |||||
| 34 | 3018945 | Container-ice |
|
- | |||||
| 47 | 5303209283 | Insert-pan Cover, Glass |
|
- | |||||
| 59 | 240442708 | Screw,pan Hd,10-32 X 0.625,hinge/mull,thrd Form (Replaces: 218188000) |
|
$ 8.34 | |||||
| 81 | 218362501 | Screw,hex Washer Head ,8-18ab X 1.250 (Replaces: 218362500) |
|
$ 12.05 | |||||
| 145 | 218660800 | Clip, Plastic, Temp Sensor Mtg, Snap-in |
|
- | |||||
| 22A | 5303916855 | Tube,sensor Sleeve ,plastic ,clear |
|
$ 60.96 | |||||
| 22B | 218731104 | Tube, Pvc, White, @ Air Deflector, Insulator |
|
$ 35.64 | |||||
| 25A | 5303280075 | Trim-crisper Cover |
|
- | |||||
| 26A | 218884611 | Pan-crisper,11.35`` Wide ,lh |
|
$ 181.54 | |||||
| F14 | 5309918806 | Switch-light/lamp |
|
Immediately | $ 21.97 | ||||
| F16A | 218906802 | Socket-light/lamp (Replaces: 218906801) |
|
$ 17.72 | |||||
| F19 | 5303286905 | Switch-energy Saver, Rocker Type |
|
$ 27.08 | |||||
| F21 | 5304404821 | Control-temperature (Replaces: 5304403736) |
|
Immediately | $ 164.57 | ||||
| F23 | 215846602 | Timer-defrost,60 Hz ,120 V ,10 Hour/30 Min (Replaces: 215846606) |
|
Immediately | $ 28.20 | ||||
| F5 | 218781002 | Heater-mullion |
|
- | |||||
| NI | 3205266 | Edge Protector, Wiring Harness |
|
$ 80.09 | |||||
| NI | 5303001260 | Screw |
|
$ 6.73 | |||||
| NI | 5308016567 | Nut-anchor |
|
- | |||||
| NI | 5303299664 | Spacer-shelf |
|
$ 24.10 | |||||
| NI | 218878600 | Wiring Harness,control/divider |
|
- | |||||
| NI | 5303001380 | Screw |
|
- | |||||
| NI | 5304455649 | Screw (Replaces: 5303001259) |
|
$ 17.01 |
