01 - Cabinet Top & Control Hood Rear Panel


02 - Cabinet, Exhaust Duct & Base


03 - Fr Blkhd, Air Duct, Felt Seal & Cylinder


04 - Gas Valve, Igniter & Gas Conversion Kits


05 - Graphics Panel, Conrol Hood & Controls


06 - Graphics Panel, Control Hood & Controls


07 - Heater Box


08 - Loading Door, Front Panels & Access Door


09 - Motor, Exhaust Fan & Belt


10 - Power Cord


11 - Rear Blkhd, Felt Seal & Cylinder Roller


12 - Terminals

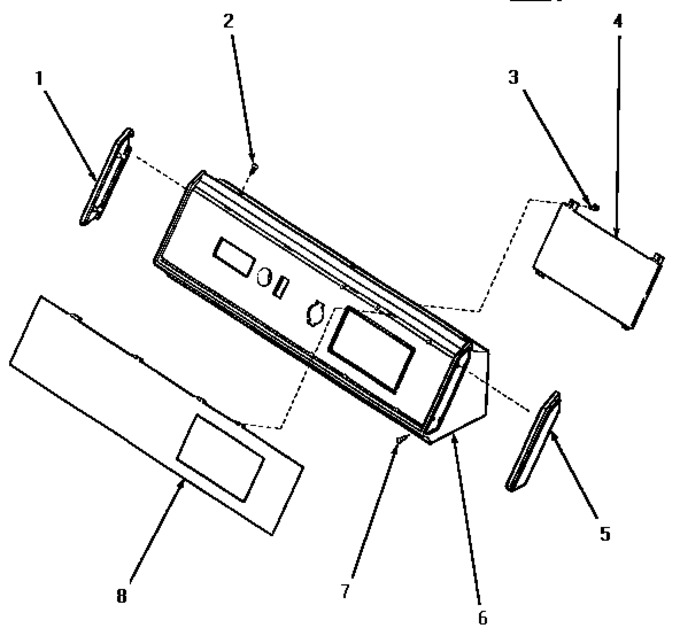

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	31249		Cap,end-l.h.-chrome		Appelez-nous	-
2	31752		Screw,no.8abx3/4 Pozidri		Appelez-nous	-
3	31260		Screw, No.8 X 3/8 Ind H				$ 2.68
4	59609		Electrical Control Kit		Appelez-nous	-
5	31248		Cap,end-r.h.-chrome		Appelez-nous	-
6	59606		Hood,dryer-black		Appelez-nous	-
7	31752		Screw,no.8abx3/4 Pozidri		Appelez-nous	-
8	Y00000000		See Note Graphics Panel -- (see Note)		Appelez-nous	-
	NOTE:		Order Graphics Panel From The Source Where The Dryer Was Purchased. Include Thecomplete Model And Serial Numbers With Order.		Appelez-nous	-
