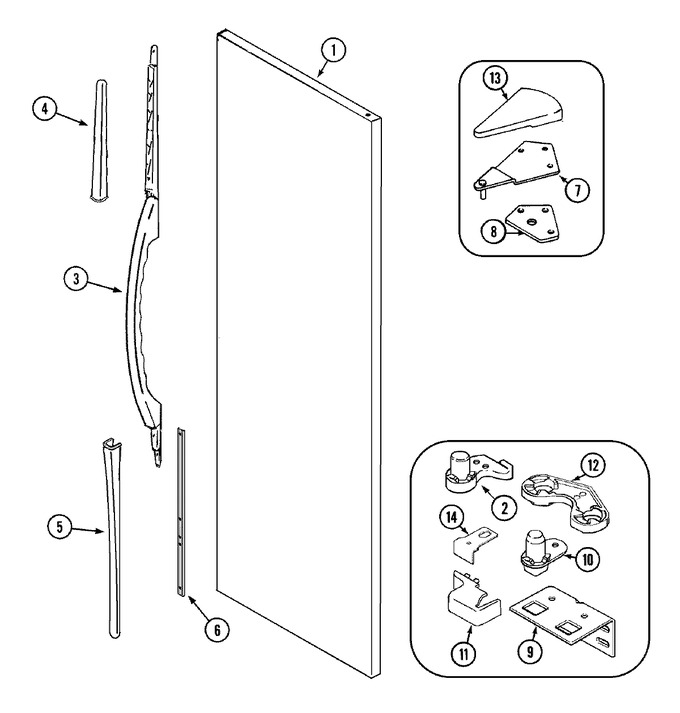

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	61003963		Panel, F.f. Door (wht)	17	Appelez-nous	-
1	61005799		Panel, F.f. Door (wht)	19	Appelez-nous	-
2	W10856122		Screw   (Replaces: 61002180)	19			$ 6.98
2	61005724		Closer, Door (w/cup)	19			$ 23.79
3	61005394		Screw	17			$ 6.24
3	61005442		Handle, Door (wht)	17	Appelez-nous	-
3	61005482		Screw	17	Appelez-nous	-
4	61005445		Extension, Handle (upr-wht)	17	Appelez-nous	-
5	61005448		Extension, Handle (lwr-wht)	17	Appelez-nous	-
6	61005394		Screw	17			$ 6.24
6	61005451		Cleat, Handle Extension	17	Appelez-nous	-
7	61001971		Hinge, Upper	17	Appelez-nous	-
7	WP3-24838-048		Screw, Upper Hinge   (Replaces: 65275-86)	17			$ 7.00
8	61001922		Shim, Upper Hinge	17			$ 0.71
9	61001918		Hinge, Lower (wht)	17			$ 38.93
9	3400112		Screw   (Replaces: 61003128)	17			$ 62.96
10	61003174		Pin, Lower Hinge	17			$ 6.22
11	61003220		Cover, Lower Hinge (wht)	17			$ 15.37
12	61003647		Closer, Door (natural)	17			$ 10.19
12	W10856122		Screw   (Replaces: 61002180)	17			$ 6.98
13	61004640		Cover, Upper Hinge (wht)	17	Appelez-nous	-
14	61003273		Stop, Door	17	Appelez-nous	-
14	W10856122		Screw   (Replaces: 61002180)	17			$ 6.98
