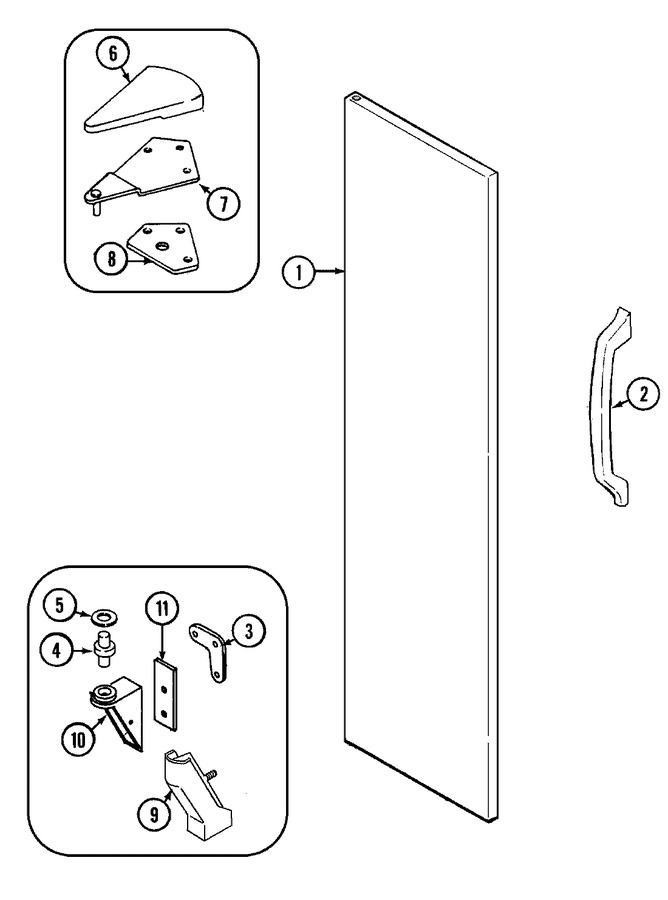

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	72346-3-WW		Panel, Frz. Door (wht)	10	Appelez-nous	-
1	495034-900		Plug Button, Door	10	Appelez-nous	-
2	12000051		Kit, Handle Assy. (wht)	10	Appelez-nous	-
2	W10856122		Screw   (Replaces: 65275-80)	10			$ 6.98
3	67874-1		Tapping Plate, Lower Hinge	10	Appelez-nous	-
3	65275-59		Screw	10	Appelez-nous	-
4	69845-1		Pin, Lower Hinge	10			$ 44.55
5	67483-3		Washer, Lower Hinge   (Replaces: 67483-2)	10		Immediately	$ 45.86
6	70121-4		Cover, Upper Hinge (wht)	10	Appelez-nous	-
7	WP3-24838-048		Screw, Upper Hinge   (Replaces: 65275-86)	10			$ 7.00
7	53709-28		Hinge, Upper	10	Appelez-nous	-
8	65031-1		Shim, Upper Hinge	10	Appelez-nous	-
9	68978-4		Cover, Lower Hinge (wht)	10	Appelez-nous	-
10	69516-4		Hinge, Lower (zinc)	10	Appelez-nous	-
10	65275-51		Screw, Lower Hinge	10	Appelez-nous	-
11	69510-1		Shim, Lower Hinge	10	Appelez-nous	-

    View Diagram in Separate Window       Print Part List
