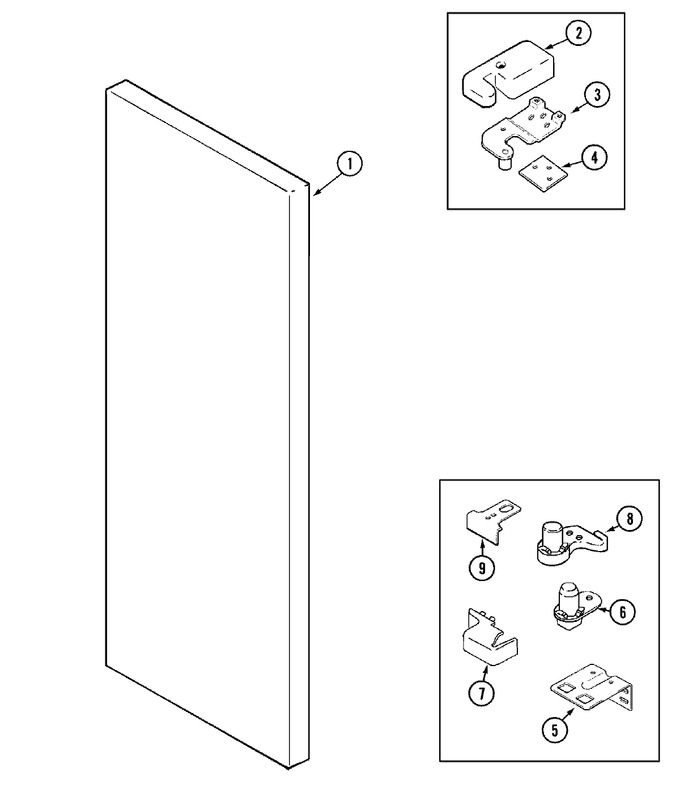

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	61005806		Panel, F.f. Door (blk)	11	Appelez-nous	-
2	61004715		Cover, Upper Hinge (blk)	11	Appelez-nous	-
3	WP3-24838-048		Screw   (Replaces: 61004763)	11			$ 7.00
3	61004174		Hinge, Upper	11	Appelez-nous	-
4	61001922		Shim, Upper Hinge	11			$ 0.71
5	61004713		Hinge, Lower (blk)	11	Appelez-nous	-
5	3400112		Screw   (Replaces: 61003128)	11			$ 62.96
6	61003174		Pin, Lower Hinge	11			$ 6.22
7	61004196		Cover, Lower Hinge (blk)	11	Appelez-nous	-
8	61005724		Closer, Door (w/cup)	11			$ 23.79
8	W10856122		Screw   (Replaces: 61002180)	11			$ 6.98
9	61004120		Stop, Door	11	Appelez-nous	-
9	W10856122		Screw   (Replaces: 61002180)	11			$ 6.98
