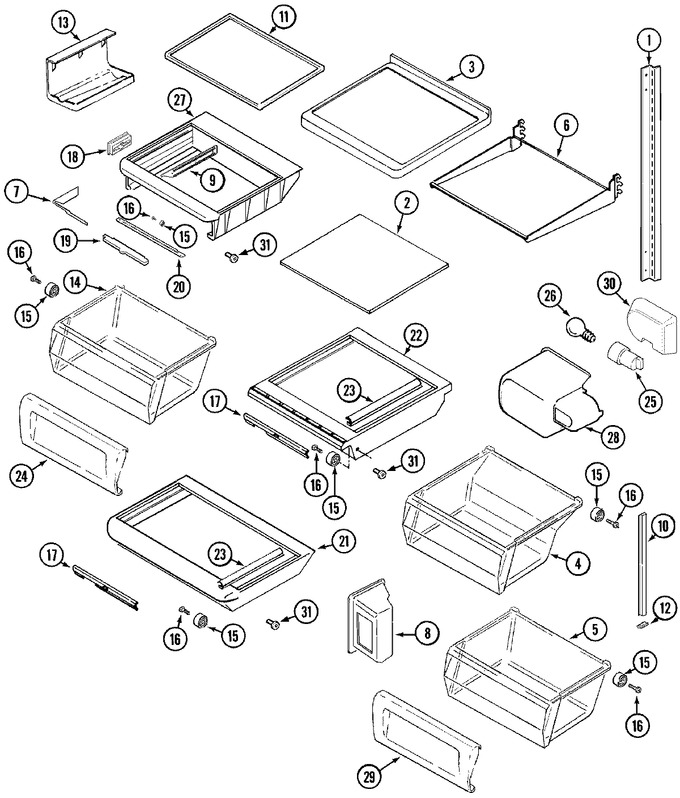

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP489478 | Screw (Replaces: 400017-1) | 10 |
|
$ 6.98 | ||||
| 1 | 61003577 | Rail, Shelf Support | 10 |
|
- | ||||
| 2 | 61003927 | Glass, Crisper Shelf | 10 |
|
- | ||||
| 2 | 61003926 | Glass, Crisper Shelf | 10 |
|
- | ||||
| 3 | 61004406 | Shelf, Slide Out (spillproof) | 10 |
|
- | ||||
| 4 | 61005713 | Pan Assy., Crisper (upr) | 16 |
|
- | ||||
| 4 | 61003929 | Pan, Crisper | 10 |
|
- | ||||
| 5 | 61005622 | Pan Assy., Crisper (lwr) | 16 |
|
$ 63.03 | ||||
| 5 | 61004568 | Pan, Crisper (lwr) | 10 |
|
- | ||||
| 6 | 61003738 | Frame, Slide Out Shelf----na | 10 |
|
- | ||||
| 7 | 61003943 | Tape, Meat Control | 10 |
|
- | ||||
| 8 | WP61006081 | Cover Assy., Air Return (Replaces: 61004287) | 10 |
|
$ 80.27 | ||||
| 9 | 489392 | Screw (Replaces: 415013-35) | 10 |
|
$ 12.02 | ||||
| 9 | 61003723 | Cover, Meat Control Tape | 10 |
|
- | ||||
| 10 | 61003888 | Strip, Filler (sides) | 10 |
|
- | ||||
| 11 | 61004409 | Glass, Meat Shelf (spillproof) | 10 |
|
- | ||||
| 12 | 400019-1 | Screw | 10 |
|
- | ||||
| 12 | 61004109 | Base, Filler Strip (rt) | 10 |
|
- | ||||
| 12 | 61004110 | Base, Filler Strip (lt) | 10 |
|
- | ||||
| 13 | 61002657 | Holder, Beverage | 10 |
|
- | ||||
| 14 | 61003934 | Pan, Meat | 10 |
|
- | ||||
| 14 | 61005715 | Pan Assy., Meat | 16 |
|
- | ||||
| 15 | WP61002307 | Roller (Replaces: 61002307) | 16 |
|
Immediately | $ 7.30 | |||
| 15 | 67423-2 | Roller | 10 |
|
$ 20.83 | ||||
| 16 | WP61002308 | Screw (Replaces: 61004728) | 16 |
|
$ 6.89 | ||||
| 16 | 65275-6 | Screw | 10 |
|
$ 5.48 | ||||
| 17 | 61003781 | Slide, Control | 10 |
|
- | ||||
| 18 | 61003725 | Retainer, Duct | 10 |
|
- | ||||
| 18 | 61003785 | Duct, Air (meat) | 10 |
|
- | ||||
| 19 | 61003674 | Slide, Control (meat) | 10 |
|
- | ||||
| 20 | 489392 | Screw (Replaces: 415013-35) | 10 |
|
$ 12.02 | ||||
| 20 | 61003784 | Cover, Meat Pan Slide | 10 |
|
- | ||||
| 21 | 61003936 | Frame, Crisper Shelf | 10 |
|
- | ||||
| 22 | 61003937 | Frame, Crisper Shelf | 10 |
|
- | ||||
| 23 | 61003938 | Seal, Crisper Side | 10 |
|
- | ||||
| 23 | 61003714 | Seal, Crisper Side (upr) | 10 |
|
- | ||||
| 24 | 61004407 | Front Assy., Meat Pan | 10 |
|
- | ||||
| 25 | 70459-1 | Receptacle, Bulb | 10 |
|
- | ||||
| 26 | W11618980 | Bulb, Light (40w) (Replaces: 61002812) | 10 |
|
$ 19.22 | ||||
| 27 | 61004408 | Frame, Meat Shelf | 10 |
|
- | ||||
| 28 | 61003439 | Shield, Light | 10 |
|
$ 38.58 | ||||
| 29 | 61004416 | Front Assy., Crisper Pan | 10 |
|
- | ||||
| 29 | 61003932 | Seal | 10 |
|
- | ||||
| 30 | WP59002061 | Screw (Replaces: 61003692) | 10 |
|
$ 6.98 | ||||
| 30 | 61004382 | Base, Receptacle | 10 |
|
- | ||||
| 31 | 67764-1 | Support, Crisper Shelf | 10 |
|
$ 8.05 | ||||
| 31 | WP489478 | Screw (Replaces: 400017-1) | 10 |
|
$ 6.98 | ||||
| 31 | WP61005337 | Support, Crisper Shelf (Replaces: 61005337) | 10 |
|
Immediately | $ 10.46 | |||
| 31 | 61005338 | Screw | 10 |
|
- |
