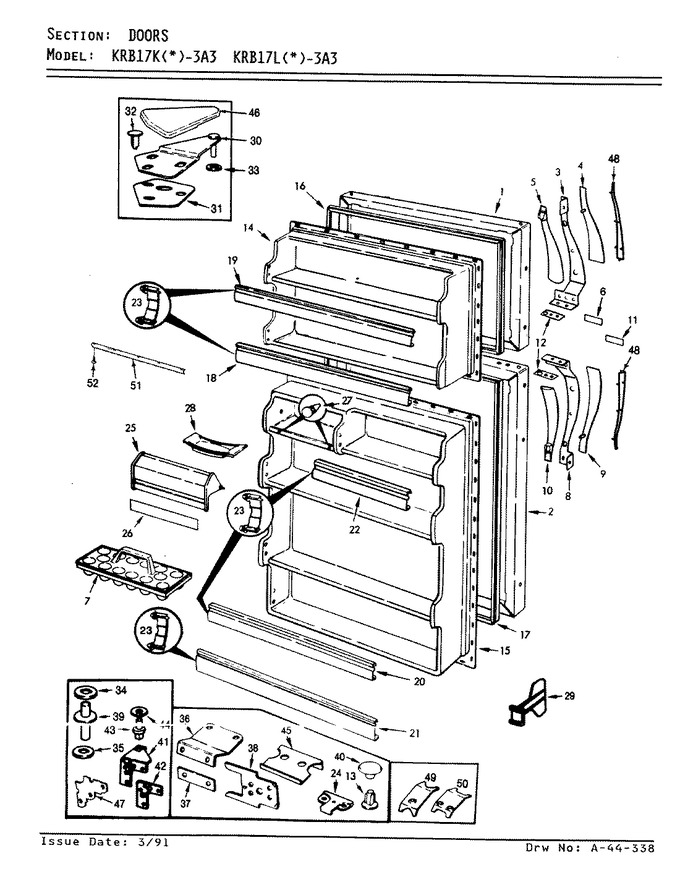

01 - Doors


02 - Freezer Compartment


03 - Fresh Food Compartment


04 - Unit Compartment & System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	68475-1-AM		Panel, F.f. Door (alm)		Appelez-nous	-
2	68471-1-AM		Panel, F.f. Door (alm)		Appelez-nous	-
2	RA95056-1		Door Insulation Kit		Appelez-nous	-
3	66255-3		Door Handle		Appelez-nous	-
4	68016-1		Insert, Handle		Appelez-nous	-
5	60445-1		Insert		Appelez-nous	-
6	60603-15		Insert, Handle		Appelez-nous	-
7	60066-1		Tray, Egg		Appelez-nous	-
8	66255-4		Door Handle		Appelez-nous	-
8	9986-122		Screw		Appelez-nous	-
9	68016-2		Insert, Handle----na		Appelez-nous	-
10	60445-1		Insert		Appelez-nous	-
11	9986-112		Screw		Appelez-nous	-
11	60603-16		Insert, Nameplate		Appelez-nous	-
12	68776-1		Shim Handle----na		Appelez-nous	-
13	55782-6		Plug Button (almond)		Appelez-nous	-
14	65929-13		Liner, Door		Appelez-nous	-
15	65934-14		Liner, F.f. Door		Appelez-nous	-
15	65275-5		Screw		Appelez-nous	-
16	66199-3		Gasket, Door		Appelez-nous	-
17	66199-4		Gasket, Door		Appelez-nous	-
18	65151-181		Trim, Door Shelf		Appelez-nous	-
19	WP61003045		Trim, Door Shelf   (Replaces: 65151-180)				$ 129.55
20	WP61003045		Trim, Door Shelf   (Replaces: 65151-180)				$ 129.55
21	WP61003045		Trim, Door Shelf   (Replaces: 65151-182)				$ 129.55
22	WP61003045		Trim, Door Shelf   (Replaces: 65151-179)				$ 129.55
23	WP65245-1		Retainer, Shelf Trim   (Replaces: 65245-1)				$ 9.39
24	60419-10		Door Stop		Appelez-nous	-
25	66184-395		Door, Dairy		Appelez-nous	-
28	29936-2		Tray, Butter		Appelez-nous	-
29	64097-11		Organizer, Shelf		Appelez-nous	-
30	53709-20		Hinge, Upper		Appelez-nous	-
31	65031-1		Shim, Upper Hinge		Appelez-nous	-
32	56144-9		Plug Button, Hinge Screw (alm)		Appelez-nous	-
33	54233-1		Washer				$ 7.71
34	67483-1		Washer, Center Hinge (upper)		Appelez-nous	-
35	54233-2		Washer		Appelez-nous	-
35	WP3-24838-048		Screw   (Replaces: 9986-87)				$ 7.00
36	68811-2		Hinge, Center		Appelez-nous	-
37	68812-1		Shim, Center Hinge		Appelez-nous	-
38	68377-1		Tapping Plate, Center Hinge		Appelez-nous	-
38	65275-24		Screw		Appelez-nous	-
39	68322-1		Food Liner		Appelez-nous	-
40	67634-3		Plug Button, Hinge Cup (alm)		Appelez-nous	-
41	67714-6		Hinge, Lower		Appelez-nous	-
41	403100-1		Screw		Appelez-nous	-
42	60626-1		Shim, Lower Hinge		Appelez-nous	-
43	68788-1		Hinge Pin		Appelez-nous	-
44	67483-3		Washer, Lower Hinge   (Replaces: 67483-2)			Immediately	$ 45.86
45	60030-4		Door Stop		Appelez-nous	-
45	9986-122		Screw		Appelez-nous	-
46	65003-6		Cover, Upper Hinge (wht)		Appelez-nous	-
46	65003-3		Cover, Upper Hinge (alm)		Appelez-nous	-
47	403100-1		Screw		Appelez-nous	-
47	65790-3		Tapping Plate		Appelez-nous	-
48	68017-4		Insert, Handle		Appelez-nous	-
49	56209-3		Clip, Stop Screw		Appelez-nous	-
50	60123-2		Clip, Stop Screw		Appelez-nous	-
51	68930-1		Seal, Secondary		Appelez-nous	-
52	52447-4		Clip		Appelez-nous	-
