Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 65275-5 Screw 10 Appelez-nous -
1 61002601 Liner, Frz. Door 10 Appelez-nous -
2 WP61004009 Seal, Frz. Door (wht)   (Replaces: 61004009) 10 Special Order $ 287.24

3 61005148 Front, Pick-off 10 Appelez-nous -
4 61002274 Organizer, Shelf 10 Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

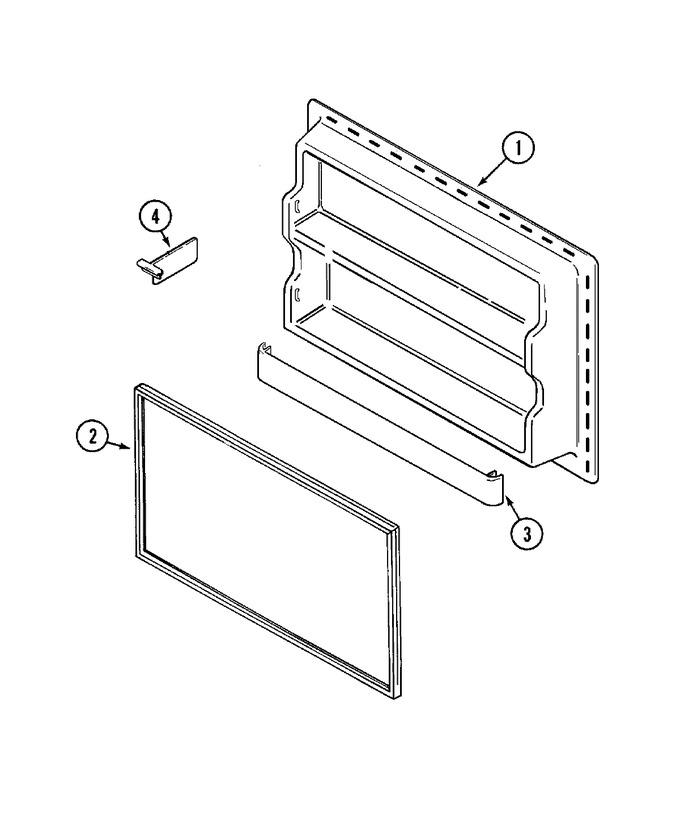

Diagram for KS58U20NE
