SELECT A DIAGRAM

01 - Freezer Compartment


02 - Freezer Inner Door


03 - Freezer Outer Door


04 - Fresh Food Compartment


05 - Fresh Food Inner Door


06 - Fresh Food Outer Door

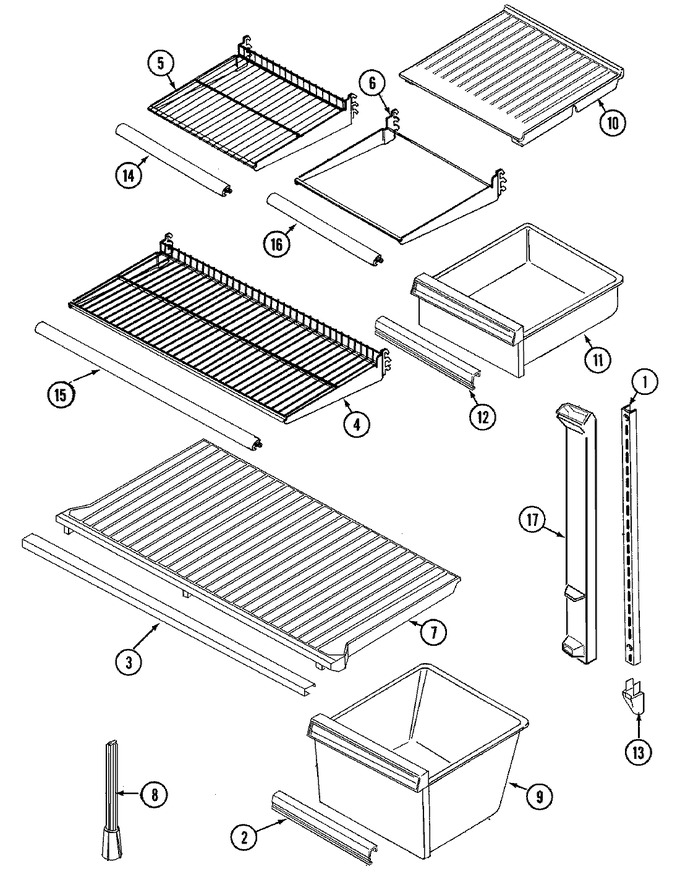

07 - Shelves & Accessories


08 - Unit Compartment & System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	60096-7		Rail, Shelf Support (lt)	10	Appelez-nous	-
1	60096-8		Rail, Shelf Support (rt)	10	Appelez-nous	-
1	60096-9		Rail, Shelf Support (center)	10	Appelez-nous	-
1	400037-28		Screw	10	Appelez-nous	-
2	70315-2		Trim, Pan Handle	10	Appelez-nous	-
3	61001522		Trim, Crisper Shelf	10	Appelez-nous	-
4	70105-4		Shelf, Full	10	Appelez-nous	-
5	70105-1		Shelf, Split	10	Appelez-nous	-
6	70105-2		Frame, Meat Shelf	10	Appelez-nous	-
7	66834-1		Shelf, Crisper	10	Appelez-nous	-
8	12001957		Support, Crisper Shelf   (Replaces: 66105-1)	10			$ 3.35
9	68221-651		Pan, Crisper	10	Appelez-nous	-
10	60075-1		Cover	10	Appelez-nous	-
11	66636-125		Pan, Meat	10	Appelez-nous	-
12	70315-3		Trim, Meat Pan	10	Appelez-nous	-
13	60340-1		End Cap, Center Rail	10	Appelez-nous	-
14	61001642		Trim, Shelf	10	Appelez-nous	-
15	61001650		Trim, Shelf	10	Appelez-nous	-
16	70108-2		Trim, Meat Pan (frt.)	10	Appelez-nous	-
17	69570-5		Tunnel, Air (meat)	10	Appelez-nous	-
17	W11233072		Screw   (Replaces: 400015-31)	10		Immediately	$ 12.62
