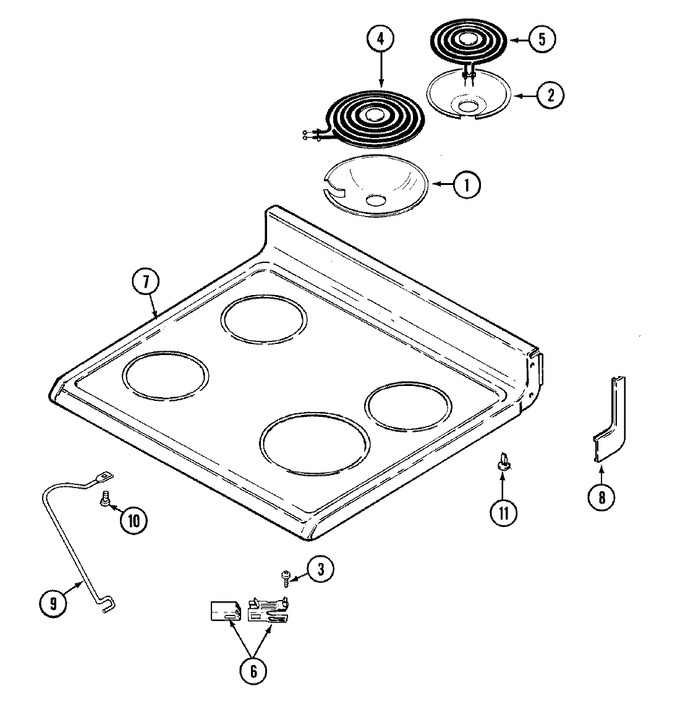

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPW10290350		Bowl, Drip (8`` Blk)   (Replaces: Y04100393)	33		Immediately	$ 15.25
1	WP74001479		Bowl, Drip (8``-blk)   (Replaces: 7725P037-60)	10			$ 17.35
1	WPW10290350		Bowl, Drip (8``) (blk)   (Replaces: 7725P023-60)	25		Immediately	$ 15.25
2	W10290353RW		Bowl, Drip (6``w/hole-blk)   (Replaces: 7725P040-60)	25		Immediately	$ 19.27
2	7725P036-60		Bowl, Drip (6``) (blk)	10	Appelez-nous	-
2	W10290353RW		Bowl, Drip (6``) (blk)   (Replaces: 7725P022-60)	25		Immediately	$ 19.27
2	W10290353RW		Bowl, Drip (6`` Blk)   (Replaces: Y04100392)	33		Immediately	$ 19.27
2	W10290353RW		Bowl, Drip (6``w/hole-blk)   (Replaces: 7725P040-60)	33		Immediately	$ 19.27
3	WP74004005		Screw   (Replaces: 7101P349-60)	10			$ 6.95
4	WPW10259865		Element (8``)   (Replaces: 7406P070-60)	10		Immediately	$ 105.92
4	WP12001560		Element Kit, 8``   (Replaces: 12500115)	14			$ 172.17
5	WPW10259868		Element (6``)   (Replaces: 7406P069-60)	10		Immediately	$ 112.28
5	WPW10259868		Element Kit, 6``   (Replaces: 12500116)	14		Immediately	$ 112.28
6	12001676		Kit, Receptacle   (Replaces: 1430306K)	10		Immediately	$ 28.45
7	2002W103-81		Top, Main (wht)	10	Appelez-nous	-
8	7746P031-60		End Cap (lt-blk)	10			$ 26.25
8	WP3195558		Nut, Push On   (Replaces: 74002563)	10			$ 7.68
8	7746P030-60		End Cap (rt-blk)	10			$ 26.16
9	74001170		Support, Top	10	Appelez-nous	-
10	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	10		Immediately	$ 12.62
11	8016P015-60		Glide	10			$ 5.65
