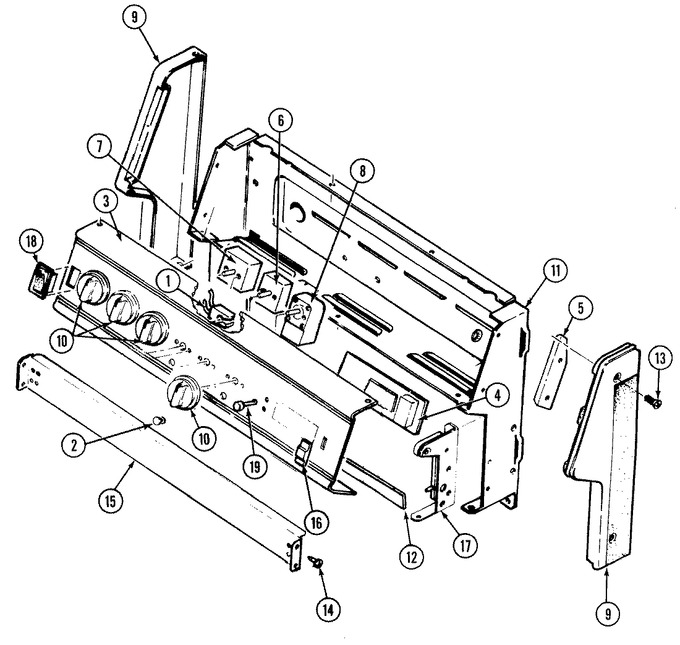

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10852510 | Light, Indicator (Replaces: 7407P102-60) | 10 |
|
$ 106.11 | ||||
| 2 | W11690131 | Lens, Indicator Light (Replaces: 7730P012-60) | 10 |
|
$ 6.73 | ||||
| 3 | 4876S068-59 | Panel Assy (wht) | 10 |
|
- | ||||
| 3 | WP74004005 | Screw (Replaces: 7118P013-60) | 10 |
|
$ 6.95 | ||||
| 4 | 7602P104-60 | Clock | 10 |
|
- | ||||
| 4 | 7101P293-60 | Screw | 10 |
|
- | ||||
| 5 | 3807F449-45 | Support, Control Pnl (rt) | 10 |
|
- | ||||
| 5 | 3807F450-45 | Support, Control Pnl (lt) | 10 |
|
- | ||||
| 6 | WP7403P255-60 | Switch, Selector (Replaces: 7403P255-60) | 10 |
|
$ 131.41 | ||||
| 7 | WP7403P239-60 | Switch, Infinite (lrg Element) (Replaces: 7403P239-60) | 10 |
|
Immediately | $ 35.10 | |||
| 7 | WP7403P238-60 | Switch, Infinite (sml Element) (Replaces: 7403P238-60) | 10 |
|
Immediately | $ 57.78 | |||
| 8 | 7404P105-60 | Thermostat | 10 |
|
$ 208.86 | ||||
| 9 | W11233072 | Screw (zinc) (Replaces: 7101P041-60) | 10 |
|
Immediately | $ 12.62 | |||
| 9 | 7726P097-60 | End Cap (rt-wht) | 10 |
|
- | ||||
| 9 | 7726P098-60 | End Cap (lt-wht)----na | 10 |
|
- | ||||
| 10 | 7737P040-60 | Knob, Infinite (wht) | 10 |
|
- | ||||
| 10 | WP7101P309-60 | Screw (Replaces: 7101P309-60) | 10 |
|
Immediately | $ 6.26 | |||
| 11 | 4001F091-51 | Housing, Control Panel | 10 |
|
- | ||||
| 12 | 3604F201-80 | Shield, Sight | 10 |
|
- | ||||
| 13 | 7101P318-60 | Screw | 10 |
|
- | ||||
| 14 | W11233072 | Screw, Housing (Replaces: 7118P015-60) | 10 |
|
Immediately | $ 12.62 | |||
| 15 | 3802F088-51 | Brace, Control Panel | 10 |
|
- | ||||
| 16 | 7711P472-60 | Button, Slide (wht)----na | 10 |
|
- | ||||
| 17 | 3807F453-51 | Support, Main Top (rt) | 10 |
|
- | ||||
| 17 | 3807F454-51 | Support, Main Top (lt) | 10 |
|
- | ||||
| 18 | 7403P314-60 | Switch, Rocker (wht) | 10 |
|
- | ||||
| 19 | 7711P473-60 | Button, Set (wht) | 10 |
|
- | ||||
| 19 | 5125A338-60 | Wires, Loose | 10 |
|
- | ||||
| 19 | 5170D145-60 | Harness, Control Panel | 10 |
|
- | ||||
| 20 | 8113P052-60 | Manual, Use & Care (french) | 10 |
|
- | ||||
| 20 | 8113P023-60 | Manual, Use & Care | 10 |
|
- | ||||
| 21 | 16002081 | Guide, Quick Ref - Norge | 10 |
|
- |
