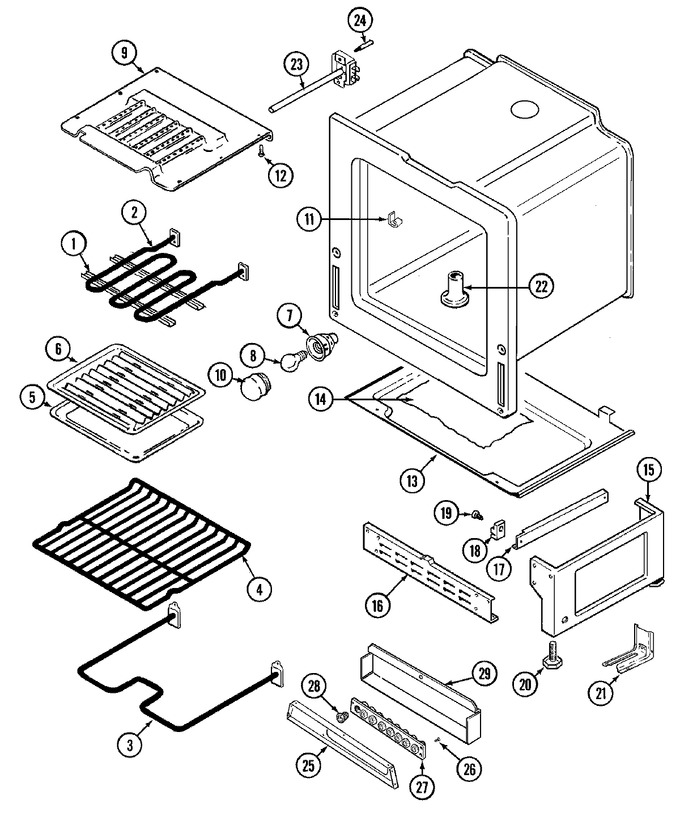

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11772394 | Screw (Replaces: 7101P345-60) | 01 |
|
Immediately | $ 10.94 | |||
| 1 | 3807F387-45 | Support, Broil Element | 01 |
|
- | ||||
| 2 | Y04000057 | Element, Broil | 01 |
|
$ 94.48 | ||||
| 3 | W11233072 | Screw (8ab1/2-ni) (Replaces: 74001530) | 01 |
|
Immediately | $ 12.62 | |||
| 3 | UB870 | Element, Bake (Replaces: 7406P064-60) | 01 |
|
Immediately | $ 44.96 | |||
| 4 | WPW10282492 | Rack, Oven (Replaces: 74001757) | 01 |
|
Immediately | $ 65.15 | |||
| 5 | Y3401F02019 | Pan, Broil | 01 |
|
- | ||||
| 6 | Y3413F01619 | Insert, Broil Pan | 01 |
|
- | ||||
| 7 | WP7407P182-60 | Receptacle, Bulb (Replaces: 7407P088-60) | 01 |
|
Immediately | $ 66.10 | |||
| 8 | 8009 | Bulb-oven (Replaces: 7407P103-60) | 01 |
|
Immediately | $ 16.80 | |||
| 9 | 3601F237-47 | Baffle, Broil | 01 |
|
- | ||||
| 10 | WP9781049 | Cover, Bulb (Replaces: 7724P047-60) | 01 |
|
Immediately | $ 71.93 | |||
| 11 | WP7112P004-60 | Clip, Thermostat (Replaces: 7112P004-60) | 01 |
|
Immediately | $ 11.07 | |||
| 12 | W11233072 | Screw (Replaces: 7101P290-60) | 01 |
|
Immediately | $ 12.62 | |||
| 13 | 3804F109-51 | Retainer, Bottom Insulation | 01 |
|
- | ||||
| 14 | 8312P058-60 | Foil, Insulation Retainer | 01 |
|
- | ||||
| 15 | 4020W013-80 | Pedestal (sides) | 01 |
|
- | ||||
| 16 | 4020F001-80 | Pedestal, Front/rear | 01 |
|
- | ||||
| 17 | 3406F028-51 | Runner, Drawer | 01 |
|
- | ||||
| 18 | 8004P033-60 | Support, Drawer | 01 |
|
- | ||||
| 19 | WPW10348409 | Screw (8abx13/16-zn) (Replaces: 74001449) | 01 |
|
Immediately | $ 6.98 | |||
| 20 | 7101P306-60 | Leg, Leveling | 01 |
|
- | ||||
| 21 | WP7101P485-60 | Screw, Bracket (Replaces: 7101P289-60) | 01 |
|
$ 26.33 | ||||
| 21 | WP3801F656-51 | Bracket, Anti-tip (Replaces: 3801F218-51) | 01 |
|
Immediately | $ 4.69 | |||
| 22 | W11233072 | Screw (8ab1/2-ni) (Replaces: 74001530) | 01 |
|
Immediately | $ 12.62 | |||
| 22 | 8026P019-60 | Tube, Vent | 01 |
|
- | ||||
| 23 | 7404P057-60 | Thermostat, Redundant | 01 |
|
- | ||||
| 24 | 7101P337-60 | Screw | 01 |
|
- | ||||
| 25 | 3801F309-80 | Bracket, Fuse | 01 |
|
- | ||||
| 26 | M0282009 | Nut (Replaces: 7103P064-60) | 01 |
|
$ 12.06 | ||||
| 26 | WP3400074 | Screw (Replaces: 7101P068-60) | 01 |
|
$ 6.47 | ||||
| 27 | 7401P031-60 | Block, Fuse | 01 |
|
- | ||||
| 28 | 7416P005-60 | Fuse, 125v 20a | 01 |
|
- | ||||
| 28 | 7416P006-60 | Fuse, 125v 15a | 01 |
|
- | ||||
| 29 | 4005F417-51 | Cover, Fuse Block | 01 |
|
- |
