| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

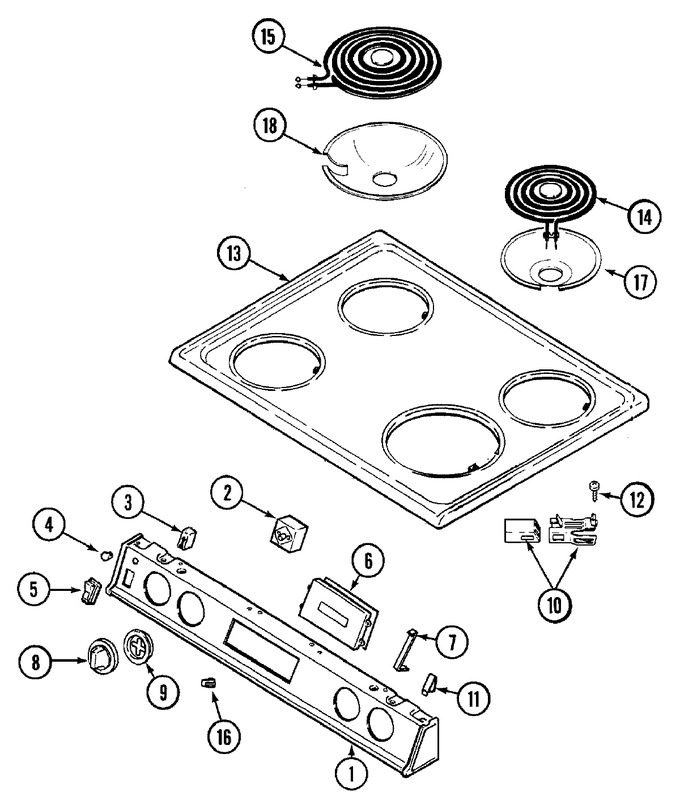

| 1 | 74001650 | Panel, Upper Front (wht) | 19 |
|
- | ||||
| 2 | WP7403P239-60 | Switch, Infinite (lrg Element) (Replaces: 7403P239-60) | 19 |
|
Immediately | $ 35.10 | |||
| 2 | WP7403P238-60 | Switch, Infinite (sml Element) (Replaces: 7403P238-60) | 19 |
|
Immediately | $ 57.78 | |||
| 2 | WP7101P309-60 | Screw (Replaces: 7101P309-60) | 19 |
|
Immediately | $ 6.26 | |||
| 3 | W10852510 | Light, Indicator (Replaces: 7407P102-60) | 19 |
|
$ 106.11 | ||||
| 4 | W11690131 | Lens, Indicator Light (Replaces: 7730P012-60) | 19 |
|
$ 6.73 | ||||
| 5 | 7403P200-60 | Switch, Rocker (wht) | 19 |
|
- | ||||
| 6 | 7601P298-60 | Clock (wht) | 19 |
|
- | ||||
| 7 | 3801F349-51 | Bracket, Clock | 19 |
|
- | ||||
| 7 | WP59002061 | Screw (6abx38-zn) (Replaces: 7101P077-60) | 19 |
|
$ 6.98 | ||||
| 8 | 7731P081-60 | Knob, Switch (wht) | 19 |
|
- | ||||
| 9 | 7740P067-60 | Bezel, Knob (wht) | 19 |
|
- | ||||
| 10 | 12001676 | Kit, Receptacle (Replaces: 1430306K) | 19 |
|
Immediately | $ 28.45 | |||
| 11 | 7112P087-60 | Clip, Top Locking | 19 |
|
- | ||||
| 12 | WP74004005 | Screw (Replaces: 7118P013-60) | 19 |
|
$ 6.95 | ||||
| 13 | 74001248 | Top Assy. (wht) | 19 |
|
- | ||||
| 14 | WPW10259868 | Element, Surface (6``) (Replaces: 74001776) | 19 |
|
Immediately | $ 112.28 | |||
| 15 | WP12001560 | Element, Surface (8``) (Replaces: 74001774) | 19 |
|
$ 172.17 | ||||
| 16 | WP7711P492-60 | Knob, Clock (wht) (Replaces: 7711P493-60) | 19 |
|
$ 12.13 | ||||
| 17 | WPW10196406 | Bowl, Drip (6``-chr) (Replaces: 74001212) | 19 |
|
Immediately | $ 12.05 | |||
| 18 | WPW10196405 | Bowl, Drip (8``-chr) (Replaces: 74001213) | 19 |
|
Immediately | $ 15.56 | |||
| 19 | 74001476 | Harness, Control Panel | 19 |
|
- | ||||
| 19 | 74001589 | Harness, Wire Control/top | 19 |
|
- | ||||
| 19 | 74001494 | Harness, Clock/relay | 19 |
|
- | ||||
| 19 | 5170P228-60 | Harness, Sensor & Lock | 19 |
|
- | ||||
| 20 | 8113P060-60 | Manual, Use & Care (frch) | 19 |
|
- | ||||
| 20 | 74001673 | Manual, Use & Care | 19 |
|
- | ||||
| 21 | 16002081 | Guide, Quick Ref - Norge | 19 |
|
- |
