View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM

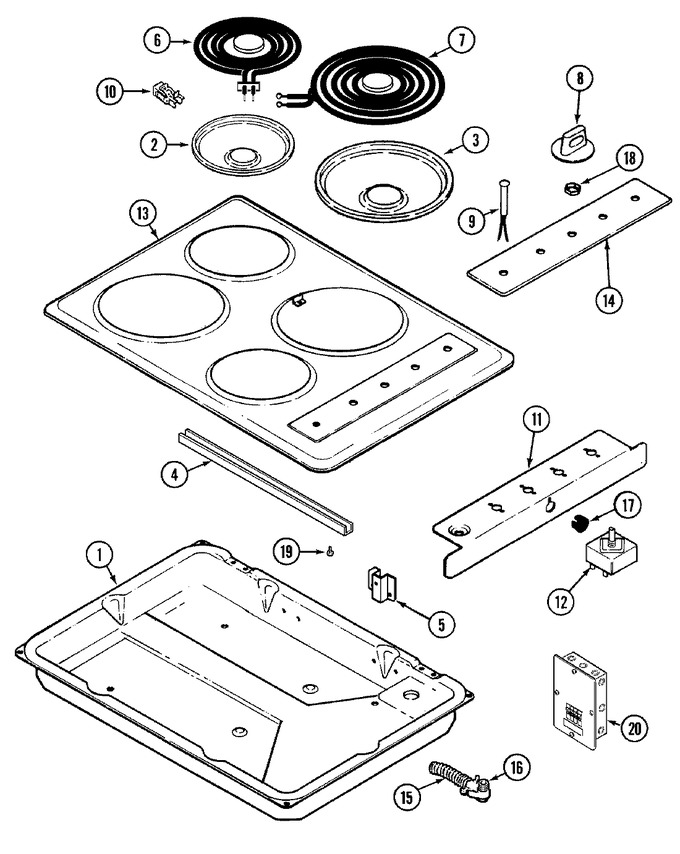

01 - Top Assembly
02 - Wiring Information
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4011F143-80 | Bottom, Burner Box | 12 |
|
- | ||||
| 2 | WPW10196406 | Bowl, Drip (6``-chr) (Replaces: 7725P048-60) | 12 |
|
Immediately | $ 12.05 | |||
| 3 | WPW10196405 | Bowl, Drip (8``-chr) (Replaces: 7725P047-60) | 12 |
|
Immediately | $ 15.56 | |||
| 4 | 3802F070-51 | Brace, Top | 12 |
|
- | ||||
| 5 | 3801F183-45 | Bracket, Main Top Support | 12 |
|
- | ||||
| 6 | WP660532 | Element (6``) (Replaces: 7406P037-60) | 12 |
|
Immediately | $ 36.90 | |||
| 7 | WP3191454 | Element (8``) (Replaces: 7406P039-60) | 12 |
|
$ 163.63 | ||||
| 8 | 7737P029-60 | Knob, Switch | 12 |
|
$ 18.07 | ||||
| 9 | 74001480 | Light, Indicator | 12 |
|
- | ||||
| 10 | 12001676 | Kit, Receptacle (Replaces: 1430306K) | 12 |
|
Immediately | $ 28.45 | |||
| 11 | 3604F133-80 | Shield Switch Wiring | 12 |
|
- | ||||
| 12 | W10900107 | Switch, Infinite (Replaces: 7403P027-60) | 12 |
|
Immediately | $ 51.87 | |||
| 13 | 74001709 | Top, Main (wht) | 12 |
|
- | ||||
| 14 | 74001710 | Trim, Control Panel | 12 |
|
- | ||||
| 15 | 3801F072-45 | Bracket, Conduit | 12 |
|
- | ||||
| 15 | 7434P010-60 | Tubing, Conduit (canada) | 12 |
|
- | ||||
| 15 | 74001785 | Wires, Flex Tubing | 12 |
|
- | ||||
| 16 | 8008P017-60 | Grommet | 12 |
|
- | ||||
| 16 | 7417P005-60 | Connector, Conduit | 12 |
|
- | ||||
| 17 | W11577436 | Grommet (Replaces: 8008P010-60) | 12 |
|
- | ||||
| 18 | 7103P021-60 | Nut, Switch | 12 |
|
- | ||||
| 19 | WP4159193 | Screw (Replaces: 7118P004-60) | 12 |
|
$ 4.29 | ||||
| 20 | 8028P005-60 | Box, Breaker | 12 |
|
- | ||||
| 21 | 74001783 | Wires (switch/element) | 12 |
|
- | ||||
| 22 | 74001784 | Manual, Use & Care (eng/fch) | 12 |
|
- | ||||
| 23 | 16002081 | Guide, Quick Ref - Norge | 12 |
|
- |
