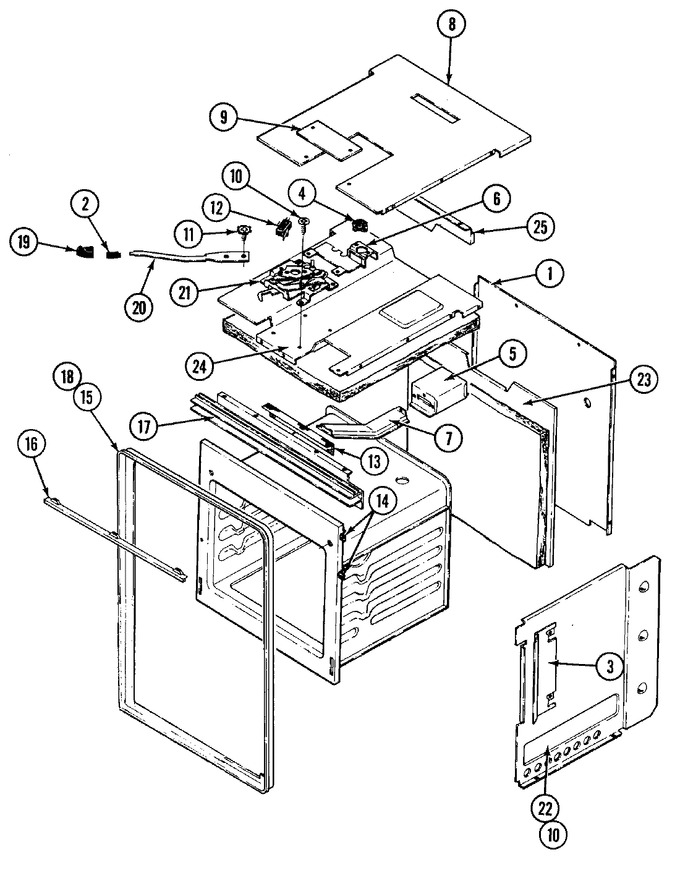

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4002F121-51		Back, Main	03	Appelez-nous	-
1	WP7101P126-60		Screw   (Replaces: 7101P061-60)	03		Immediately	$ 6.85
2	7112P003-60		Clip, Latch Handle	03	Appelez-nous	-
3	3601F130-51		Baffle, Side	03	Appelez-nous	-
4	7403P063-60		Switch, High Limit	03			$ 156.41
5	4006W046-45		Box, Vent	03	Appelez-nous	-
6	3801F128-45		Bracket, Hi Limit	03	Appelez-nous	-
7	3818W002-19		Channel, Vent Assy	03	Appelez-nous	-
8	4005F202-51		Cover, Box	03	Appelez-nous	-
9	4005F160-45		Cover, Lock	03	Appelez-nous	-
10	WP7101P126-60		Screw   (Replaces: 7101P061-60)	03		Immediately	$ 6.85
11	WP4159193		Screw   (Replaces: 7101P115-60)	03			$ 4.29
12	7403P007-60		Switch, Door Lock	03	Appelez-nous	-
12	7101P035-60		Screw, Switch	03	Appelez-nous	-
13	3604F048-80		Shield, Terminal	03	Appelez-nous	-
14	7712P020-60		Clip	03	Appelez-nous	-
15	7750P025-60		Extrusion, Front Frame (blk)	03	Appelez-nous	-
16	7706P163-60		Extrusion, Retainer (blk)	03	Appelez-nous	-
17	WP7103P114-60		Nut, Snap (round-wht)   (Replaces: 7103P039-60)	03			$ 9.89
17	7103P040-60		Nut, Snap (wht)	03	Appelez-nous	-
17	7756P022-60		Extrusion, Vent (blk)	03	Appelez-nous	-
17	7103P051-60		Nut, Snap	03	Appelez-nous	-
18	WP98008545		Screw (1/2``)   (Replaces: 7101P040-60)	03			$ 15.94
19	7701P132-60		Handle, Door Latch (blk)	03	Appelez-nous	-
20	8009P011-60		Lever, Latch	03	Appelez-nous	-
21	7003P001-60		Insulator	03	Appelez-nous	-
21	8002P072-60		Latch Assy.   (Replaces: 8002P016-60)	03			$ 306.52
21	3801F127-51		Bracket, Door Latch	03	Appelez-nous	-
22	2618F054-51		Panel, Side (lt)	03	Appelez-nous	-
22	WP7101P126-60		Screw   (Replaces: 7101P061-60)	03		Immediately	$ 6.85
22	2618F053-51		Panel, Side (rt)	03	Appelez-nous	-
23	3804F096-51		Retainer, Rear	03	Appelez-nous	-
24	3804F053-51		Retainer,top	03	Appelez-nous	-
25	3604F101-80		Shield, Air	03	Appelez-nous	-
