01 - Body

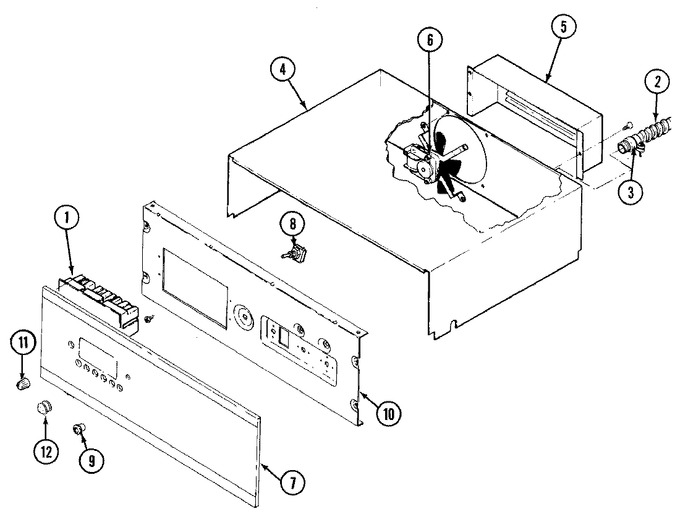

02 - Control Panel
03 - Door
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 74001544 | Clock (wht) | 10 |
|
- | ||||
| 1 | 8010P100-60 | Spacer | 10 |
|
- | ||||
| 1 | WP59002061 | Screw (6abx38-zn) (Replaces: 7101P077-60) | 10 |
|
$ 6.98 | ||||
| 2 | 7434P003-60 | Conduit, Flexible | 10 |
|
- | ||||
| 3 | 7417P003-60 | Connector, Cable | 10 |
|
- | ||||
| 4 | WP7101P126-60 | Screw (Replaces: 7101P356-60) | 10 |
|
Immediately | $ 6.85 | |||
| 4 | 4005F150-51 | Cover, Wire | 10 |
|
- | ||||
| 5 | WP7101P126-60 | Screw (Replaces: 7101P356-60) | 10 |
|
Immediately | $ 6.85 | |||
| 5 | 4005F262-51 | Cover, Fan | 10 |
|
- | ||||
| 6 | 7427P010-60 | Fan Assy. | 10 |
|
- | ||||
| 6 | 7101P239-60 | Screw | 10 |
|
- | ||||
| 6 | 8008P004-60 | Grommet | 10 |
|
- | ||||
| 7 | 7912P096-60 | Glass, Control Panel | 10 |
|
- | ||||
| 8 | 7403P109-60 | Switch, Push (blk) | 10 |
|
- | ||||
| 9 | 7214P007-60 | Sleeve, Switch (blk) | 10 |
|
- | ||||
| 10 | 7208P008-60 | Seal | 10 |
|
- | ||||
| 10 | 3605F196-80 | Plate, Backing | 10 |
|
- | ||||
| 11 | WP7711P492-60 | Knob, Clock (blk) (Replaces: 7711P492-60) | 10 |
|
$ 12.13 | ||||
| 12 | 7711P490-60 | Button, Clock (blk) | 10 |
|
- | ||||
| 12 | 5125A391-60 | Harness, Loose Wire | 10 |
|
- | ||||
| 12 | 74001545 | Harness, Main | 10 |
|
- | ||||
| 13 | 8112P119-60 | Manual, Use & Care | 10 |
|
- | ||||
| 13 | 74001522 | Manual, Use & Care (french) | 10 |
|
- | ||||
| 14 | 16000329 | Guide, Quick Ref. - Magic Chef | 10 |
|
- |
