SELECT A DIAGRAM

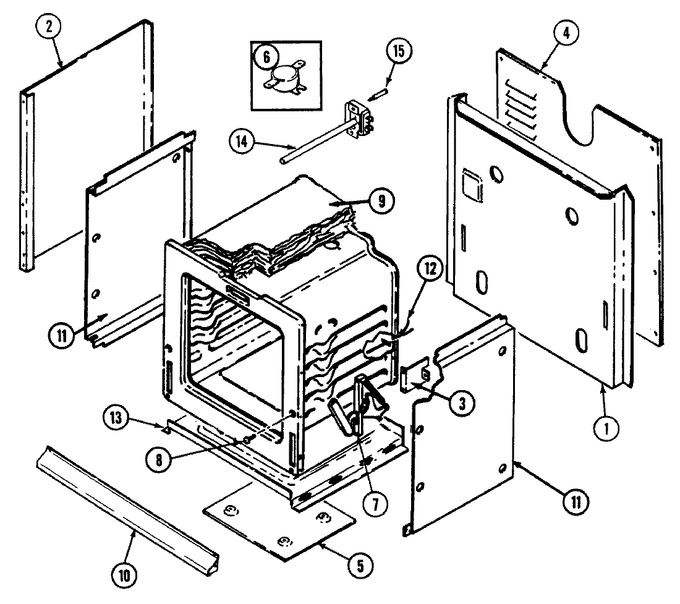

01 - Body
02 - Internal Controls
03 - Oven
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4002F169-51 | Back, Main | 1 |
|
- | ||||
| 2 | 2618F082-51 | Panel, Side | 1 |
|
- | ||||
| 3 | 3807F400-51 | Support,oven Rear | 1 |
|
- | ||||
| 4 | 4005F434-51 | Cover, Rear | 1 |
|
- | ||||
| 5 | 3604F189-51 | Shield, Heat | 1 |
|
- | ||||
| 6 | 7403P316-60 | Switch, Hi-limit | 1 |
|
$ 87.76 | ||||
| 7 | 7106P050-60 | Hinge----na | 1 |
|
- | ||||
| 8 | WP4159193 | Screw (Replaces: 7101P115-60) | 1 |
|
$ 4.29 | ||||
| 9 | 4804F030-60 | Insulation, Back & Bottom | 1 |
|
- | ||||
| 9 | 4804F029-60 | Insulation, Wrap | 1 |
|
- | ||||
| 10 | 3604F181-71 | Shield, Lower Vent (wht) | 1 |
|
- | ||||
| 11 | 3804F108-51 | Retainer, Insulation (side) | 1 |
|
- | ||||
| 12 | 12001656 | Sensor, Oven (Replaces: 7430P010-60) | 1 |
|
Immediately | $ 39.55 | |||
| 13 | 4011F217-51 | Bottom, Main | 1 |
|
- | ||||
| 14 | 8028P003-60 | Box, Breaker | 1 |
|
- | ||||
| 14 | 7404P057-60 | Thermostat, Redundant | 1 |
|
- | ||||
| 15 | 7101P337-60 | Screw | 1 |
|
- |
