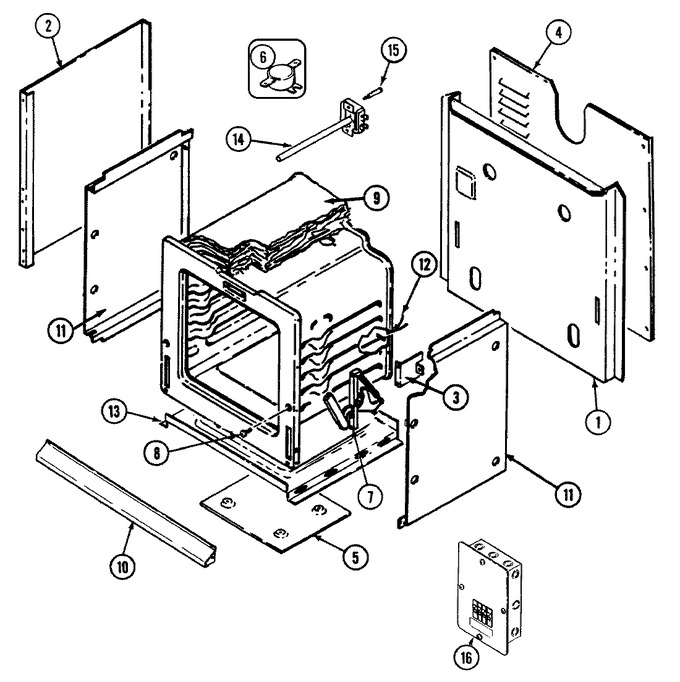

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4002F207-51 | Back, Main | 10 |
|
- | ||||
| 2 | 2618F082-51 | Panel, Side | 10 |
|
- | ||||
| 3 | 3807F400-51 | Support,oven Rear | 10 |
|
- | ||||
| 4 | 4005F434-51 | Cover, Rear | 10 |
|
- | ||||
| 5 | 3604F189-51 | Shield, Heat | 10 |
|
- | ||||
| 6 | 7403P316-60 | Switch, Hi-limit | 10 |
|
$ 87.76 | ||||
| 7 | 7106P057-60 | Hinge | 10 |
|
- | ||||
| 8 | WP4159193 | Screw (Replaces: 7101P115-60) | 10 |
|
$ 4.29 | ||||
| 9 | 4804F036-60 | Insulation, Wrap | 10 |
|
- | ||||
| 9 | 4804F038-60 | Insulation, Back | 10 |
|
- | ||||
| 10 | 3604F181-71 | Shield, Lower Vent (wht) | 10 |
|
- | ||||
| 11 | 3804F108-51 | Retainer, Insulation (side) | 10 |
|
- | ||||
| 13 | 4011F217-51 | Bottom, Main | 10 |
|
- | ||||
| 14 | 7750P099-60 | Trim, Side (rt-wht) | 10 |
|
- | ||||
| 14 | 7750P100-60 | Trim, Side (lt-wht) | 10 |
|
- | ||||
| 14 | 74001390 | Extrusion, Side (rt-wht) | 14 |
|
- | ||||
| 14 | 74001392 | Extrusion, Side (lt-wht) | 14 |
|
- |
