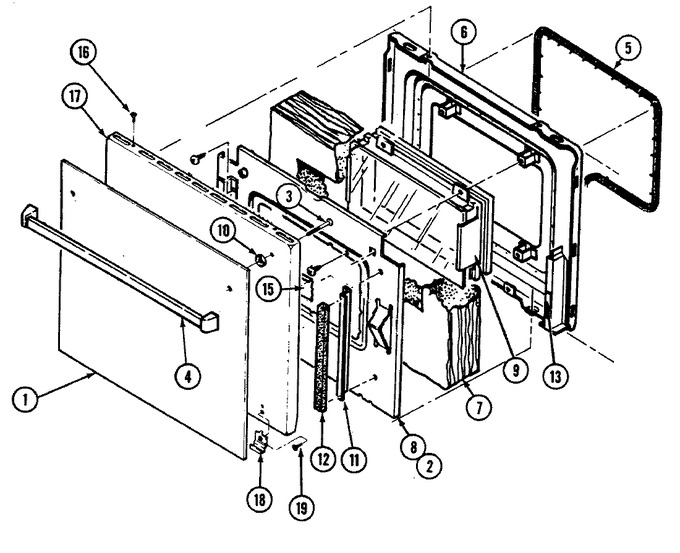

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 7902P367-60 | Glass, Door (blk) | 1 |
|
- | ||||
| 2 | 8010P085-60 | Spacer, Rubber | 1 |
|
- | ||||
| 3 | 7101P326-60 | Screw | 1 |
|
- | ||||
| 4 | 7701P110-60 | Handle, Door (blk) | 1 |
|
- | ||||
| 5 | WPW10162384 | Gasket, Door (Replaces: 7201P046-60) | 1 |
|
Immediately | $ 77.61 | |||
| 6 | 2402W202-19 | Lining, Door | 1 |
|
- | ||||
| 7 | 4804F034-60 | Insulation, Door | 1 |
|
- | ||||
| 8 | 3601F232-45 | Baffle, Door | 1 |
|
- | ||||
| 9 | 7907P021-60 | Window Asy. | 1 |
|
- | ||||
| 10 | 74003986 | Spacer, Glass (Replaces: 8010P016-60) | 1 |
|
$ 13.08 | ||||
| 11 | 3818F052-80 | Channel, Air | 1 |
|
- | ||||
| 12 | 7208P002-60 | Seal | 1 |
|
- | ||||
| 13 | WP854334 | Seal, Rubber (Replaces: 7208P011-60) | 1 |
|
$ 11.95 | ||||
| 14 | W11233072 | Screw (Replaces: 7101P290-60) | 1 |
|
Immediately | $ 12.62 | |||
| 15 | 8270P090-60 | Tape, Foil (3`` Wide) | 1 |
|
- | ||||
| 16 | WP98008545 | Screw (1/2``) (Replaces: 7101P040-60) | 1 |
|
$ 15.94 | ||||
| 17 | 2401F117-70 | Panel, Door (blk) | 1 |
|
- | ||||
| 18 | 7112P093-60 | Clip, Glass (blk) | 1 |
|
$ 12.67 | ||||
| 19 | 7101P276-60 | Screw (blk) | 1 |
|
- |
