01 - Body
02 - Control Panel
03 - Door
04 - Door (ser. Pre. 15)
05 - Internal Controls
06 - Oven
SELECT A DIAGRAM
New Model Search:

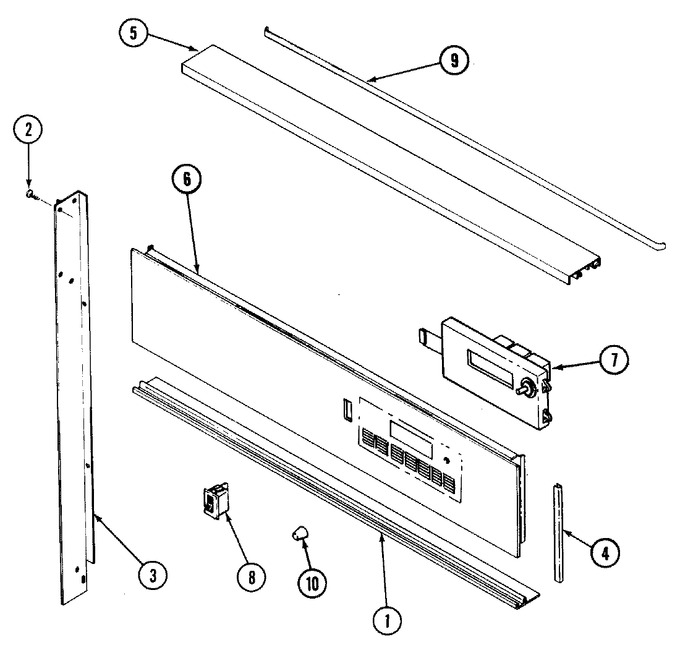

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 7756P098-60 | Trim, Vent (blk) | 10 |
|
- | ||||
| 2 | WP98008545 | Screw (1/2``) (Replaces: 7101P040-60) | 10 |
|
$ 15.94 | ||||
| 3 | WP7711P492-60 | Knob, Clock (blk) (Replaces: 7711P475-60) | 10 |
|
$ 12.13 | ||||
| 4 | 7720P151-60 | Trim, Control Panel (blk) | 10 |
|
- | ||||
| 5 | 7756P100-60 | Trim, Top (blk) | 10 |
|
- | ||||
| 6 | 7721P057-60 | Panel, Control (blk) | 10 |
|
- | ||||
| 7 | 7601P231-60CP | Clock (canada) (Replaces: 7601P231-60) | 10 |
|
- | ||||
| 7 | WP59002061 | Screw, Switch (Replaces: 7101P148-60) | 10 |
|
$ 6.98 | ||||
| 8 | 7403P067-60 | Switch, Rocker (blk) (Replaces: 7403P102-60) | 10 |
|
$ 91.35 | ||||
| 9 | 7706P167-60 | Trim, Filler Strip | 10 |
|
- | ||||
| 10 | 7003P056-60 | Insulation, Fiberboard | 10 |
|
- | ||||
| 11 | 5170D210-60 | Harness, Main (canada) | 10 |
|
- | ||||
| 11 | 74002244 | Harness, Main (canada) | 13 |
|
- | ||||
| 12 | 5170P207-60 | Harness, Sensor/lock | 10 |
|
- | ||||
| 13 | 74001394 | Spacer, Mtg. Adapter (blk) | 14 |
|
- | ||||
| 14 | 74001387 | Screw (blk) | 14 |
|
- | ||||
| 15 | 8113P024-60 | Manual, Use & Care | 10 |
|
- | ||||
| 15 | 8113P056-60 | Manual, Use & Care (french) | 10 |
|
- | ||||
| 16 | 16002081 | Guide, Quick Ref - Norge | 10 |
|
- |
