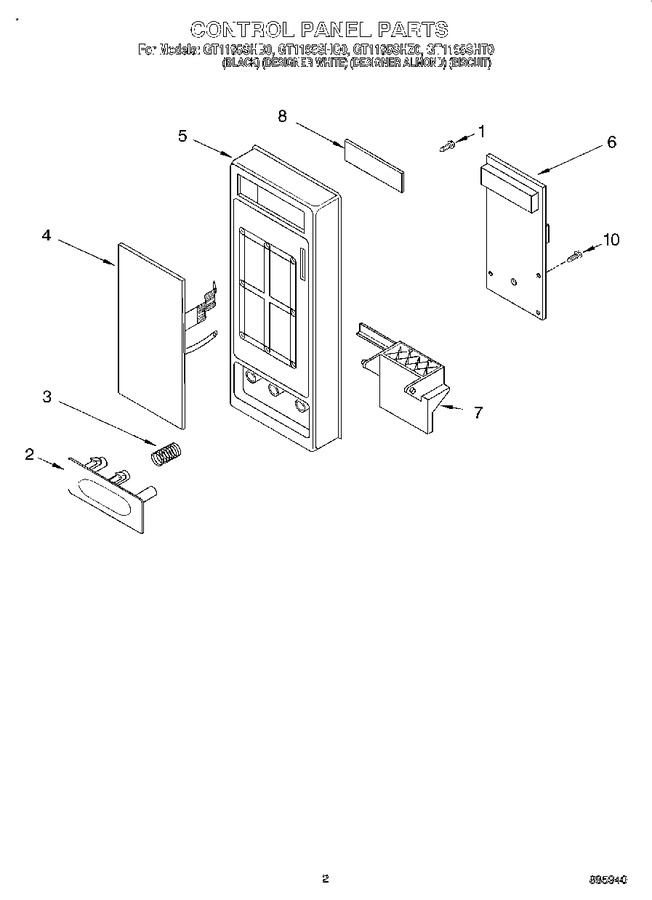

02 - Control Panel
03 - Oven Cavity
04 - Latch Board
05 - Oven Interior
06 - Base Plate
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4358381 | Screw |
|
- | |||||
| 2 | 4359874 | Release Button (black) |
|
- | |||||
| 2 | 8171911 | Release Button (almond) |
|
- | |||||
| 2 | 8172088 | Release Button (biscuit) |
|
- | |||||
| 2 | 4359873 | Release Button (white) |
|
- | |||||
| 3 | 4158178 | Spring, Button |
|
$ 5.83 | |||||
| 4 | 4359876 | Key Membrane (black) |
|
- | |||||
| 4 | 4359875 | Key Membrane (white) |
|
- | |||||
| 4 | 8171912 | Key Membrane (almond) |
|
- | |||||
| 4 | 8172089 | Key Membrane (biscuit) |
|
- | |||||
| 5 | 4359877 | Control Panel (white) |
|
- | |||||
| 5 | 8171913 | Control Panel (almond) |
|
- | |||||
| 5 | 8172090 | Control Panel (biscuit) |
|
- | |||||
| 5 | 4359878 | Control Panel (black) |
|
- | |||||
| 6 | 8171896 | P.c.b Sub Assembly |
|
- | |||||
| 7 | 4359718 | Lever, Release |
|
- | |||||
| 8 | 4359720 | Lens |
|
- | |||||
| 10 | 4358883 | Screw |
|
- |
