SELECT A DIAGRAM
01 - Door, Literature
02 - Control Panel
03 - Oven Cavity
04 - Latch Board
05 - Oven Interior

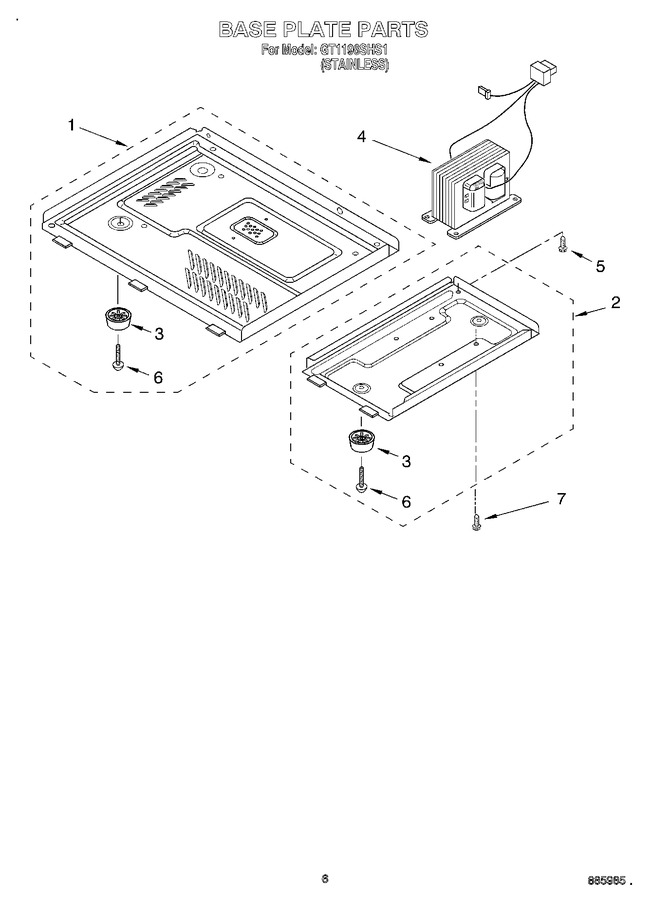

06 - Base Plate
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4359921 | Base Plate (l) |
|
- | |||||
| 2 | 4359922 | Base Plate (r) |
|
- | |||||
| 3 | 8171902 | Leg |
|
- | |||||
| 4 | 8171899 | Transformer |
|
- | |||||
| 5 | 4358192 | Screw |
|
- | |||||
| 6 | 4358381 | Screw |
|
- | |||||
| 7 | 4344826 | Screw (Replaces: 4358489) |
|
$ 14.31 | |||||
| 7 | 8172131 | Mk1190xhs 30`` Stainless (hardware Pack (incl In Trim Kit)) |
|
- | |||||
| N/A | Trim Kits |
|
- |
