SELECT A DIAGRAM

01 - Base, Pump, Motor & Components


02 - Cabinet, Water Valve, Hoses & Frnt Panel


03 - Clutch, Brake & Belts

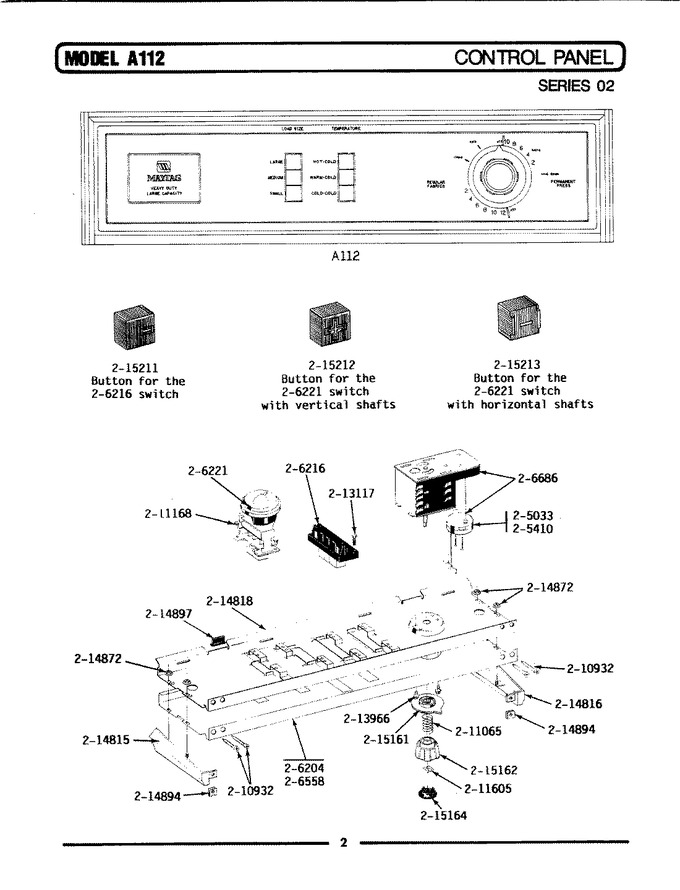

04 - Control Panel (a112)


05 - Orbital Transmission


06 - Top Cover, Console & Lid Switch


07 - Top Cover, Console & Lid Switch (ser 11)


08 - Transmission


09 - Tub, Agitator, Mtg. Stem & Seal (ser 04)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	205033		Timer Motor 120-60	00	Appelez-nous	-
2	205410		Timer Motor 120-60	00	Appelez-nous	-
3	206204		Control Panel	02	Appelez-nous	-
4	206216		Water Temperature Switch	00	Appelez-nous	-
5	206221		Water Level Switch----na	00	Appelez-nous	-
6	206558		Control Panel	02	Appelez-nous	-
7	206686		Timer	00			$ 193.64
8	210932		Screw, No.8 X 9/16 Ctsk	00	Appelez-nous	-
9	211065		Spring, Timer Knob	00			$ 5.70
10	WPW10139210		Screw, No.8 X 5/16 Inch   (Replaces: 211168)	00			$ 6.75
11	211605		Retainer, Timer Knob	00	Appelez-nous	-
12	WP67006908		Screw-temp. Switch To Panel   (Replaces: 213117)	00		Immediately	$ 7.16
13	WP3400014		Screw-timer To Control Pane   (Replaces: 213966)	00			$ 6.98
14	214815		End Cap F/control Panel-lh	00	Appelez-nous	-
15	214816		End Cap F/control Panel-rh	00	Appelez-nous	-
16	214818		Back Up Plate	00	Appelez-nous	-
17	214872		Palnut, End Cap	00	Appelez-nous	-
18	214894		Fastener, End Cap	00	Appelez-nous	-
19	214897		Pad, Control Panel	00	Appelez-nous	-
20	215161		Timer Dial Indicator	00	Appelez-nous	-
21	215162		Timer Knob	00	Appelez-nous	-
22	215164		Cap For Knob	00	Appelez-nous	-

    View Diagram in Separate Window       Print Part List
