Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 203320 Lint Filter - Dispenser 00 Appelez-nous -
2 205537 Top Cover-white 00 Appelez-nous -
3 205537L Top Cover-almond----na 00 Appelez-nous -
4 212815 Dispenser Cup 00 Appelez-nous -
5 214437 Bleach Inlet 00 Appelez-nous -
6 202718 Tension Springs 00 In-Stock Immediately $ 200.35

7 205000 Glide Kit (4 W/poly Lube)   (Replaces: 204998) 00 Special Order $ 62.00

8 WP489503 Clamp - 15/16``   (Replaces: 205161) 00 In-Stock Immediately $ 9.68

9 205908 Lower Motor Mount 00 Appelez-nous -
10 205999 Motor Mount Assm Complete 00 Special Order $ 61.84

11 214434 Spout, Deflector 00 Special Order $ 43.09

12 214436 Gasket 00 Appelez-nous -
13 214437 Bleach Inlet 00 Appelez-nous -
14 214495 Tube, Inlet To Tub 00 Special Order $ 30.61

15 214956 Mount, Motor/upper 00 Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

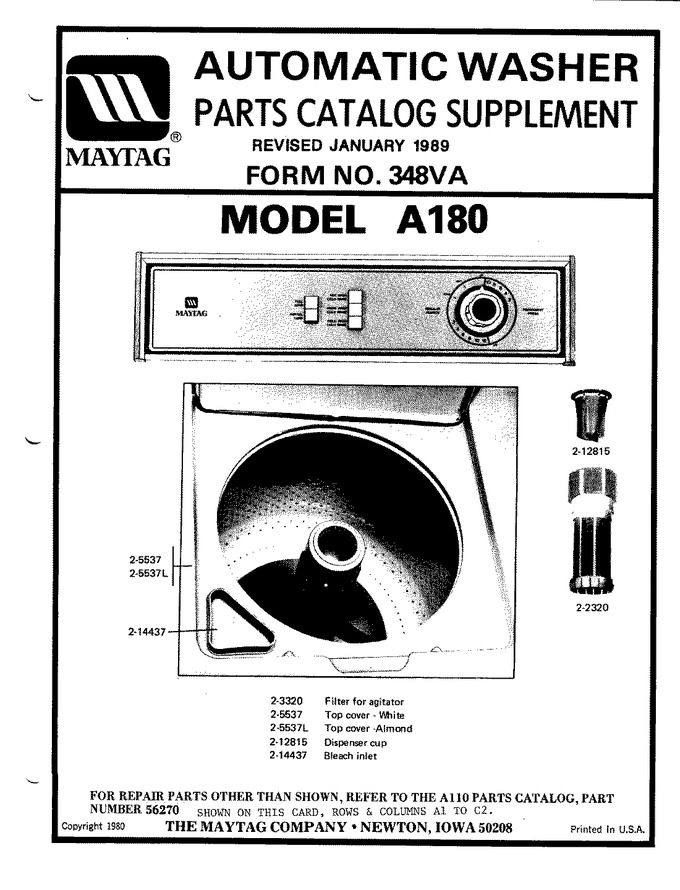

Diagram for LA180
