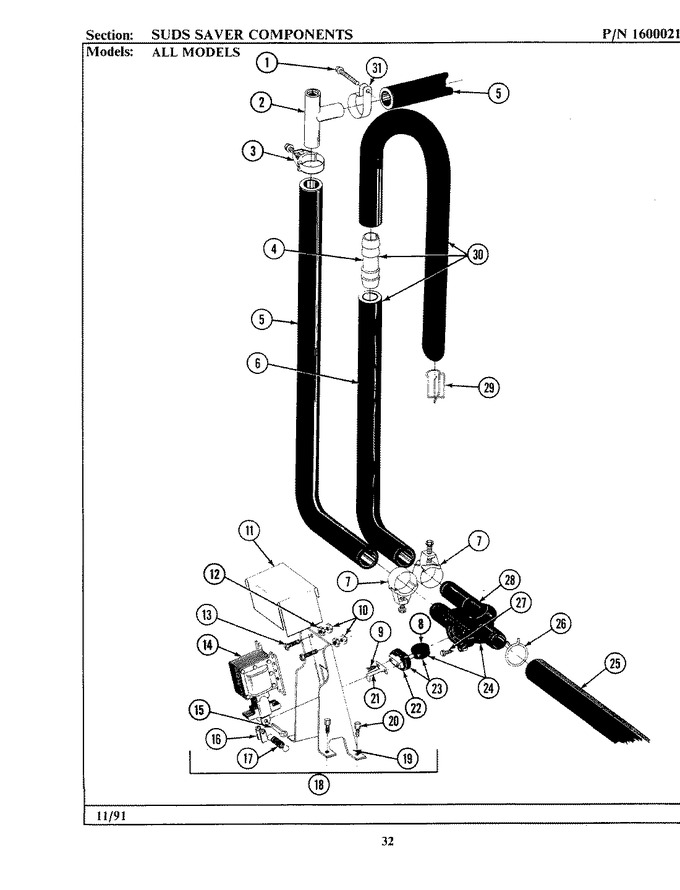

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	Y310842		Screw	00	Appelez-nous	-
2	76660		Siphon Break Kit   (Replaces: 201112)	00		Immediately	$ 119.93
3	WP285655		Hose Clamp - 1-1/2 Inch   (Replaces: 200908)	00		Immediately	$ 7.55
4	WP16272		Hose Coupling   (Replaces: 211111)	00			$ 7.04
5	211704		Drain Hose	00			$ 78.91
6	211171		Suds Return Hose-lower	00	Appelez-nous	-
7	WP285655		Hose Clamp - 1-5/8 Inch   (Replaces: 200461)	00		Immediately	$ 7.55
8	211083		Flapper	00			$ 5.70
9	911266		Screw, Strainer To Pump	00	Appelez-nous	-
10	WP3400029		Nut, Washered Lock   (Replaces: Y311426)	00		Immediately	$ 6.98
11	211388		Shield	00	Appelez-nous	-
12	052690		Hex. Nut, No.10-32	00	Appelez-nous	-
13	W11573362		Screw, No.10-32 X 7/8----na   (Replaces: Y054810)	00			$ 12.62
14	200806		Solenoid	00	Appelez-nous	-
15	052366		Cotter Key, 1/8 X 7/8	00	Appelez-nous	-
16	213855		Pin, Pivot	00	Appelez-nous	-
16	211087		Solenoid Link	00	Appelez-nous	-
17	211085		Return Spring	00			$ 5.84
18	201197		Diverter Valve   (Replaces: 201168)	00			$ 33.29
19	211516		Valve Bracket	00			$ 232.31
20	WP489128		Slotted Hex Head Screw   (Replaces: 910091)	00			$ 9.79
21	200828		Valve Arm Assembly	00	Appelez-nous	-
22	213856		Retainer	00	Appelez-nous	-
23	204316		Diaphragm And Arm	00			$ 29.15
24	202506		Valve, Diverter	00	Appelez-nous	-
25	211518		Hose	00	Appelez-nous	-
26	WP3367052		Clamp, Hose   (Replaces: 202574)	00			$ 7.49
27	WP90767		Screw   (Replaces: 214332)	00		Immediately	$ 7.04
28	204313		Body For Diverter Valve	00			$ 77.49
29	212056		Strainer	00	Appelez-nous	-
30	200736		Suds Return Hose	00	Appelez-nous	-
31	211448		Clamp	00	Appelez-nous	-
