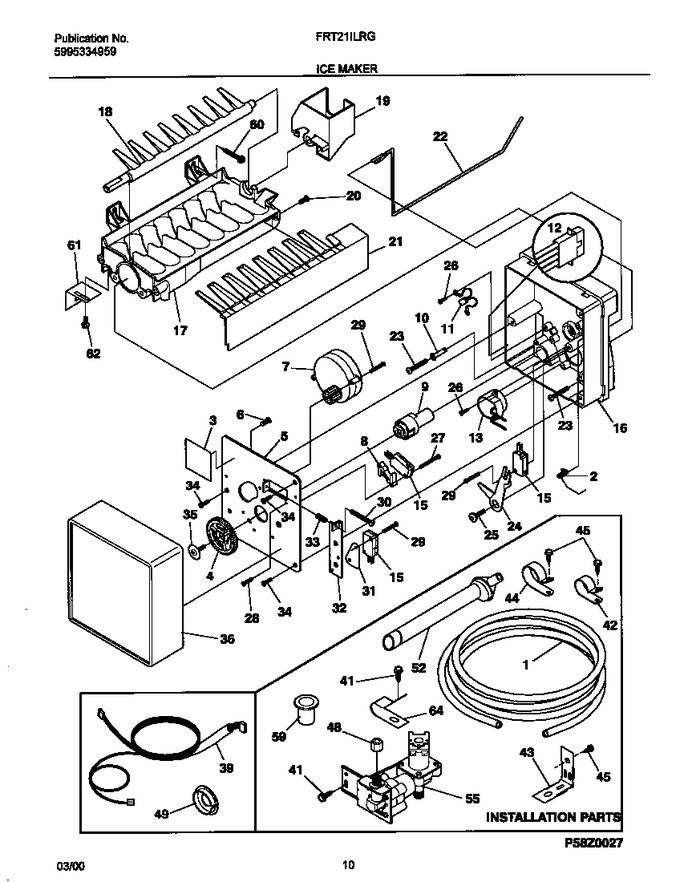

06 - Ice Maker


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5303015131		Tube-water,71`` ,valve-to-im		Appelez-nous	-
2	3206348		Spring, Shut-off Arm		Appelez-nous	-
3	3206299		Label,id Plate		Appelez-nous	-
4	3206301		Gear		Appelez-nous	-
5	3206303		Plate-mounting				$ 47.41
6	3206305		Screw-ground Wire,8-32 X 0.250		Appelez-nous	-
7	5303918277		Motor-ice Maker   (Replaces: 3206306)			Immediately	$ 96.11
8	3206312		Spacer-hold Switch		Appelez-nous	-
9	3206313		Cam		Appelez-nous	-
10	3206315		Clamp				$ 35.33
11	3206319		Thermal Cutoff,ice Maker ,complete Assy				$ 48.72
12	3206349		Wiring Harness,ice Maker ,internal ,with Plug				$ 130.20
13	3206322		Thermostat Assy,ice Maker				$ 130.41
15	5304456667		Switch,(3)   (Replaces: 3206324)				$ 92.53
16	3206326		Support,phenolic		Appelez-nous	-
17	241798231		Mold-ice Maker, Radius Cube, With Heater   (Replaces: 5303320545)			Immediately	$ 200.97
18	3206328		Ejector-ice		Appelez-nous	-
19	3206330		Bearing & Inlet		Appelez-nous	-
20	5304408581		Screw,8-32 X 0.375		Appelez-nous	-
21	3206332		Ice Stripper		Appelez-nous	-
22	3206333		Shut-off Arm		Appelez-nous	-
23	5304408582		Screw,8-32 X 0.875 ,mold-to-support ,(3)		Appelez-nous	-
24	5304456675		Lever-arm   (Replaces: 3206335)				$ 66.63
25	3206336		Screw,8-18 X 0.562 ,lever Arm/sprt		Appelez-nous	-
26	3206337		Screw-thermo/sprt,4-24 X 0.375 ,(4)		Appelez-nous	-
27	3206338		Screw,4-40 X 1.000 ,hold Switch Mtg ,(2)		Appelez-nous	-
28	3206339		Screw-timing Stop`4-40 X 0.375		Appelez-nous	-
29	3206323		Screw,4-24 X 0.750 ,(6)		Appelez-nous	-
30	3206341		Screw-timing Adj,8-32 X 1.000		Appelez-nous	-
31	3206342		Insulator		Appelez-nous	-
32	3206343		Plate-valve Switch		Appelez-nous	-
33	5304408583		Spring-timing Adj		Appelez-nous	-
34	5304408584		Screw,plascrew ,6 ,(3)		Appelez-nous	-
35	5304408585		Screw		Appelez-nous	-
36	3206347		Cover-ice Maker				$ 29.24
39	3206358		Wiring Harness,icemaker ,external		Appelez-nous	-
41	5308000039		Screw		Appelez-nous	-
42	5303001193		Clamp,.50 Id ,steel ,water Tube				$ 16.30
43	5303001199		Clamp				$ 65.92
44	240396801		Clamp, Nylon   (Replaces: 5308000133)				$ 19.13
45	5304455651		Screw   (Replaces: 5303001343)				$ 14.41
48	5308000200		Nut,7/16-20 ,nylon		Appelez-nous	-
49	5303001147		Plug-harness Hole, (2)				$ 22.30
52	218462000		Tube-water Inlet		Appelez-nous	-
55	218907301		Valve-water,single Solenoid ,50/60 Hz ,105/120 V		Appelez-nous	-
59	5303001191		Sleeve-tube Insert				$ 6.72
60	218362501		Screw,hex Washer Head ,8-18ab X 1.250   (Replaces: 218362500)				$ 12.05
61	218721500		Bracket-leveling, Ice Maker				$ 73.00
62	218737900		Screw-im Brkt Mtg,hex Washer Head `8-32d X 0.375		Appelez-nous	-
64	5304455846		Clamp,0.31 Id ,steel ,copper Wtr Line   (Replaces: 5303001549)				$ 10.63
*91634	5314368805		Tube-valve To Im, Plastic, Cut To Length		Appelez-nous	-
*91635	3206321		Connector Plug, Wiring Harness				$ 29.82
*91636	5303918277		Icemaker,radius Cube ,115 V ,no Instl Parts   (Replaces: 218699501)			Immediately	$ 96.11
