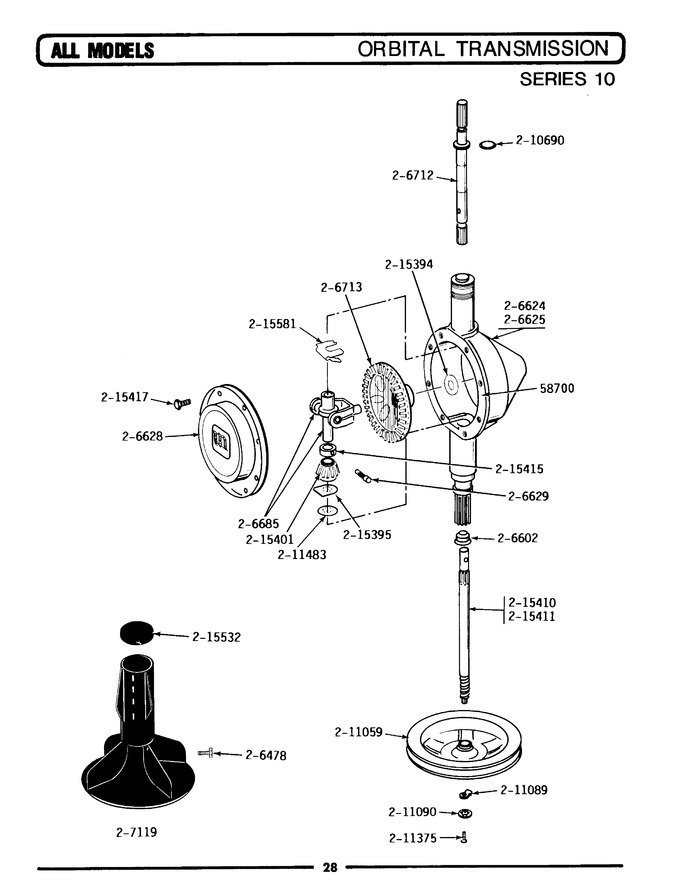

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 001 | W10841140 | Silastic,adh.sealant (Replaces: Y058700) | 10 |
|
Immediately | $ 24.92 | |||
| 002 | 206478 | Screw & Washer For Agitator | 10 |
|
- | ||||
| 003 | 206602 | Seal, Lip (center Shaft) | 10 |
|
- | ||||
| 004 | 206624 | Housing, Transmission | 10 |
|
- | ||||
| 005 | 206625 | Housing, Transmission | 10 |
|
- | ||||
| 006 | 206628 | Cover, Transmission | 10 |
|
- | ||||
| 007 | WPY206629 | Pin, Collar (Replaces: Y206629) | 10 |
|
$ 7.88 | ||||
| 008 | 206685 | Block, Torque And Yoke Assembl | 10 |
|
- | ||||
| 009 | 206712 | Assembly, Agitator Shaft | 10 |
|
- | ||||
| 010 | 206713 | Gear, Bevel | 10 |
|
- | ||||
| 011 | 207119 | Agitator W/lock Screw | 10 |
|
- | ||||
| 012 | 210690 | Seal, Rubber | 10 |
|
$ 13.19 | ||||
| 013 | WP6-2301530 | Pulley, Drive (Replaces: 211059) | 10 |
|
$ 178.73 | ||||
| 014 | WP211089 | Lug, Stop (Replaces: 211089) | 10 |
|
$ 10.16 | ||||
| 015 | WP22003555 | Washer, Lock (Replaces: 211090) | 10 |
|
$ 19.26 | ||||
| 016 | WP912618 | Screw,stop Lug(center Shaft) (Replaces: 211375) | 10 |
|
$ 6.98 | ||||
| 017 | WP6-2114830 | Washer, Splined (Replaces: 211483) | 10 |
|
$ 7.05 | ||||
| 018 | 215394 | Washer, Bevel Gear | 10 |
|
- | ||||
| 019 | WP215395 | Plate, Clutch (Replaces: 215395) | 10 |
|
Immediately | $ 6.79 | |||
| 020 | WPW10221114 | Pinion (Replaces: 215401) | 10 |
|
$ 58.63 | ||||
| 021 | 215410 | Center Shaft - Larger | 10 |
|
- | ||||
| 022 | NLA | Shaft, Center | 10 |
|
- | ||||
| 023 | 215415 | Collar, Lower | 10 |
|
- | ||||
| 024 | 215417 | Screw, Transmission Cover | 10 |
|
- | ||||
| 025 | 215532 | Agitator Cap - Black | 10 |
|
$ 5.65 | ||||
| 026 | WP215581 | Spring, Agitator Shaft (Replaces: 215581) | 10 |
|
$ 7.47 |
