SELECT A DIAGRAM

01 - Control Panel, Top Cvr & Lid Swtch (00)


02 - Control Panel, Top Cvr & Lid Swtch (11)

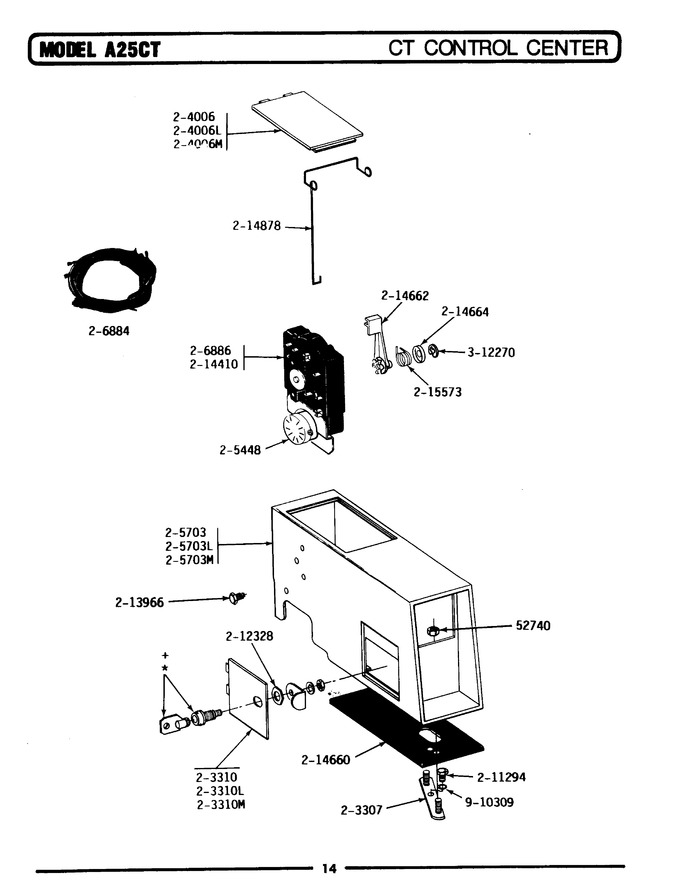

03 - Control Center


04 - Control Components


05 - Cabinet, Water Valve, Hoses & Frnt Panel


06 - Tub, Agitator, Mounting Stem & Seal


07 - Transmission (series 00)


08 - Orbital Transmission (series 10)


09 - Base, Pump, Motor & Components


10 - Clutch, Brake & Belts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
001	WP62739		Nut   (Replaces: Y052740)	00			$ 6.85
002	NLA		Mtg. Strap----na	00	Appelez-nous	-
003	NLA		Access Door (white)	00	Appelez-nous	-
004	NLA		Access Door (white)	00	Appelez-nous	-
005	205448		Timer Motor 120-60	00	Appelez-nous	-
006	NLA		Outer Case-white	00	Appelez-nous	-
007	NLA		Wire Harness	00	Appelez-nous	-
008	206886		Timer	00	Appelez-nous	-
009	Y206922		Timer W/pivot Arm	00	Appelez-nous	-
010	WP90767		Screw   (Replaces: 211294)	00		Immediately	$ 7.04
011	WP90767		Screw   (Replaces: 212276)	00		Immediately	$ 7.04
012	W11395752		Nut, Hex   (Replaces: 212328)	00			$ 11.74
013	WP3400014		Screw-timer To Control Pane   (Replaces: 213966)	00			$ 6.98
014	214410		Timer Caution Label	00	Appelez-nous	-
015	214660		Gasket, Meter Case	00	Appelez-nous	-
016	214662		Pivot Arm For Timer	00	Appelez-nous	-
017	214664		Spring Retainer For Timer	00	Appelez-nous	-
018	214878		Latch For Access Door	00	Appelez-nous	-
019	215573		Spring, Timer	00	Appelez-nous	-
020	Y312270		E Clip	00	Appelez-nous	-
021	910309		Washer	00	Appelez-nous	-

    View Diagram in Separate Window       Print Part List
