01 - Cover


02 - Doors


03 - Cabinet


04 - Shelves


05 - System


06 - Icemaker

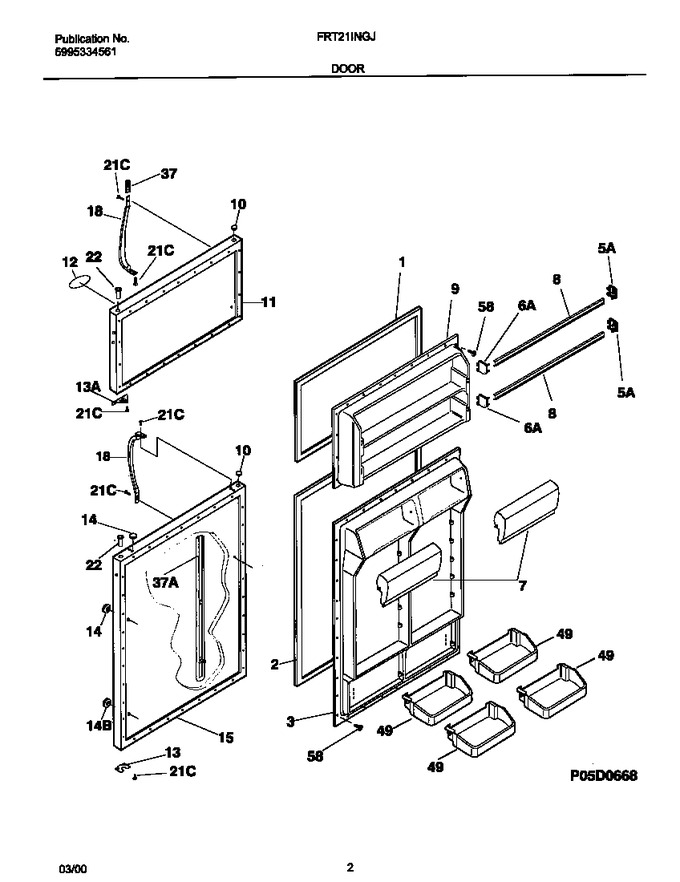

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	215608913		Gasket-frzr Door, White, Magnetic		Appelez-nous	-
2	218730609		Gasket-refr Door, White, Magnetic				$ 207.27
3	218894001		Panel-inner Door,refr		Appelez-nous	-
5	5303323480		Support-door Rack, White, Rh				$ 14.18
6	5303323481		Support-door Rack, White, Lh			Immediately	$ 14.18
7	5303284478		Door-dairy				$ 179.92
8	215474053		Rack-door		Appelez-nous	-
9	5303206631		Panel-inner Door, Frzr		Appelez-nous	-
10	5308000134		Plug-button, White, Hinge Brg Hole				$ 5.62
11	5303917826		Panel-frzr Door, White, W/insulation		Appelez-nous	-
12	218156538		Nameplate Assy,white ,with Magnet		Appelez-nous	-
13	218249001		Door Stop, White, Frzr Section				$ 82.06
13	218800300		Door Stop,plated		Appelez-nous	-
14	218074001		Plug-button,white ,refr Door Front ,1 ,lower				$ 13.76
14	240494001		Plug-button, White   (Replaces: 218915701)			Immediately	$ 18.20
15	5303917828		Panel-refr Door, White, W/insul & Brace				$ 128.73
18	218668001		Handle-door, White			Immediately	$ 66.16
21	218252201		Screw,8 Truss Hd ,10-32ca X 0.500   (Replaces: 218252200)			Immediately	$ 14.18
22	218519300		Bearing-hinge				$ 14.60
37	218811633		Trim-handle,white ,refr Door ,w/dec Gold Band,& Snap-on		Appelez-nous	-
37	218811636		Trim-handle,1.74`` ,white ,upper				$ 6.20
49	215441502		Bin-door,gallon ,with Trim   (Replaces: 218592323)				$ 176.87
58	218781101		Screw,pan Head ,8-18 X 0.625   (Replaces: 218781100)				$ 15.60
*11722	215008613		Label-nameplate,white		Appelez-nous	-
*11723	215518000		Magnet-nameplate		Appelez-nous	-
*11726	218364001		Frame-nameplate, White		Appelez-nous	-
*11727	5303917276		Insulation-door, Fiberglass, (bulk)				$ 330.91
37A	215782300		Lock-handle Trim,snap-in				$ 34.49
37B	218676003		Band-decorative, Gold				$ 47.11
37C	218906701		Lock-handle Trim,stick-on				$ 67.86

    View Diagram in Separate Window       Print Part List
