SELECT A DIAGRAM

01 - Control Panel


02 - Top


03 - Control Center


04 - Cabinet


05 - Tub Cover

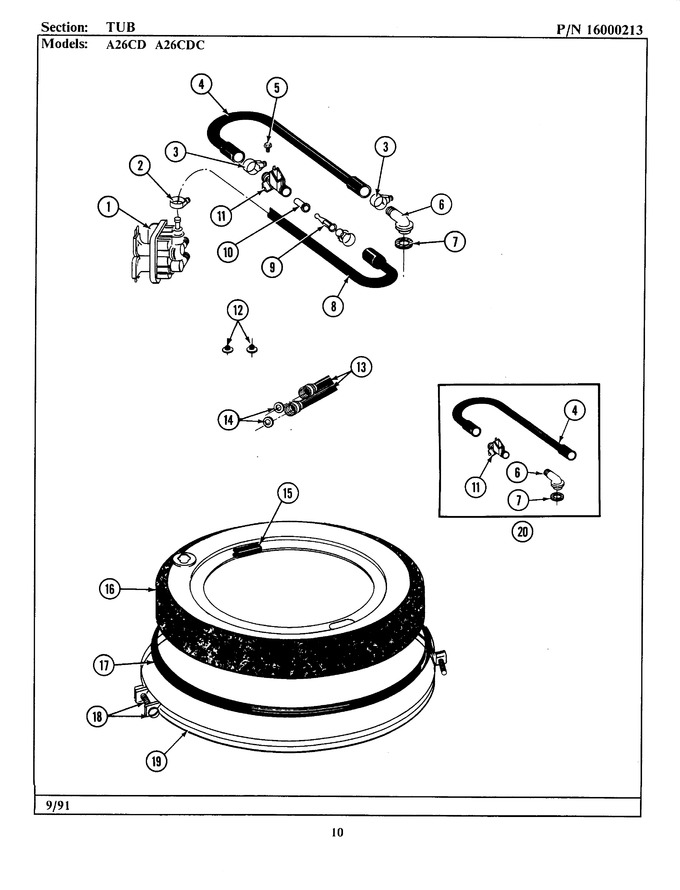

06 - Tub


07 - Transmission


08 - Base


09 - Clutch, Brake & Belts


10 - Motor & Pump


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
001	205613		Water Valve 120v 60hz   (Replaces: 205614)	01		Immediately	$ 103.57
002	WP596669		Hose Clamp   (Replaces: 201575)	01		Immediately	$ 7.56
003	WP596669		Hose Clamp - 1-1/16 Inch   (Replaces: 202515)	01		Immediately	$ 7.56
004	WPY215234		Injector Fill Hose   (Replaces: Y215234)	01			$ 83.54
005	312620		Sems Screw, No.10-16 X 1/2``	01	Appelez-nous	-
006	215235		Injector Tube	01			$ 16.14
007	215233		Seal For Injector Tube	01			$ 5.84
008	WP213013		Hose, Injector   (Replaces: 213013)	01		Immediately	$ 44.40
009	WP213015		Injector Nozzle   (Replaces: 213015)	01		Immediately	$ 7.29
010	WP216201		Valve For Injector Sub   (Replaces: 213016)	01		Immediately	$ 18.88
011	WP215447		Sleeve For Injector   (Replaces: 215447)	01		Immediately	$ 7.32
012	200961		Screen Washer, Inlet Hose	01	Appelez-nous	-
013	WP89503		Hose, Inlet Assy.   (Replaces: 205828)	01		Immediately	$ 21.68
014	Y013783		Gasket, Inlet Hose	01			$ 18.72
015	215232		Unbalance Bumper	01	Appelez-nous	-
016	206380		Tub Cover	01	Appelez-nous	-
017	WP211232		Seal   (Replaces: 211232)	01			$ 62.96
018	205529		Nut & Bolt Kit For Tub Clam	01			$ 6.58
019	200846		Clamp - Tub Cover	01			$ 62.11
020	WP206680		Injector Hose Kit   (Replaces: 206683)	01		Immediately	$ 76.98

    View Diagram in Separate Window       Print Part List
